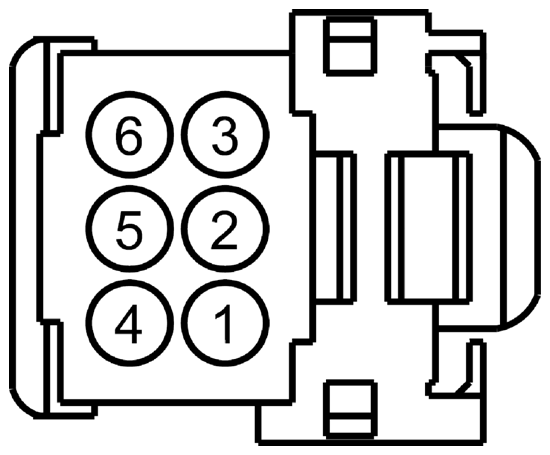

Ignition Switch-Push Button Start Connector End View (C2195)

Fig 1: Identifying Ignition Switch-Push Button Start Connector (C2195)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPK34 (BN-VT)	20	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 +
2	CPK36 (VT)	26	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED
3	GD214 (BK-BU)	20	GROUND - INSTRUMENT PANEL STRUCTURE
4	SBP18 (YE-RD)	22	FUSE - 18 OR CIRCUIT BREAKER
5	VLN04 (VT-WH)	26	CTRL MOD. - IP/SWITCH ILLUMINATION
6	CPK35 (YE)	26	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 +

Available Pigtail Kits

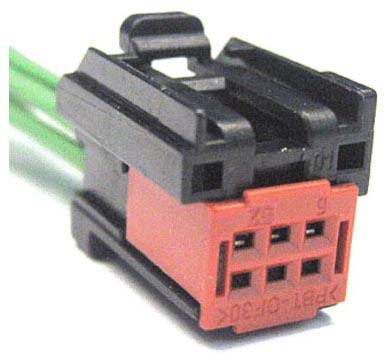

Pigtail Kit Part Number WPT-907	Service Part Number: 8U2Z-14S411-JA  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Sensor - Steering Wheel Position Sensor - Sunload Solenoid - Canister Vent Switch - Brake Deactivation Switch - Deck Lid/Hatch Release Switch - Fog Lamp Switch - Hazard Warning Switch - Headlamp/Foglamp

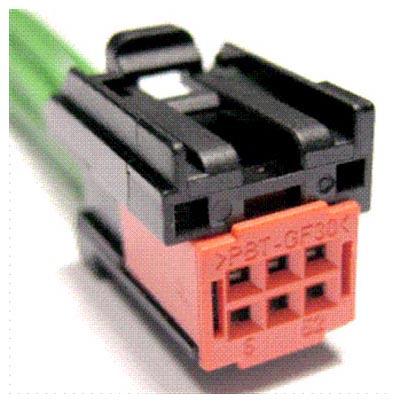

Pigtail Kit Part Number WPT-1164	Service Part Number: 8U2Z-14S411-JB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Switch - Deck Lid/Hatch Release Switch - Deck Lid/Lift Gate Ajar Switch - Hazard Warning Switch - Heated Back Light (Rear Defrost) Switch - Power Liftgate Switch - Reverse Park Aid Switch - Start/Stop Switch - Sunshade Switch - Traction Control
