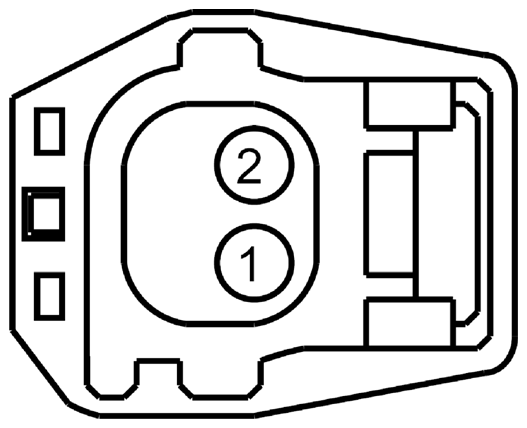

Hydraulic Solenoid Valve, Right Front Connector End View (C1669)

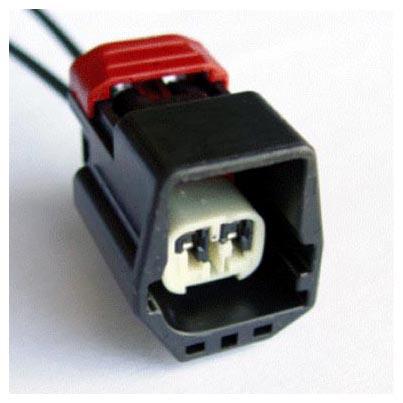

Fig 1: Identifying Hydraulic Solenoid Valve, Right Front Connector (C1669)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCD04 (GY-YE)	18	CTRL MOD. - CDC # VALVE DAMPER FRONT RIGHT +
2	RCD04 (BU-OG)	18	CTRL MOD. - CDC # VALVE DAMPER FRONT RIGHT -

Available Pigtail Kits
Pigtail Kit Part Number WPT-273	Service Part Number: 3U2Z-14S411-GVA  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses Sensor - Ambient Temp Sensor - Heated Thermostat
