Hydraulic Solenoid Valve, Left Front Connector End View (C1668)

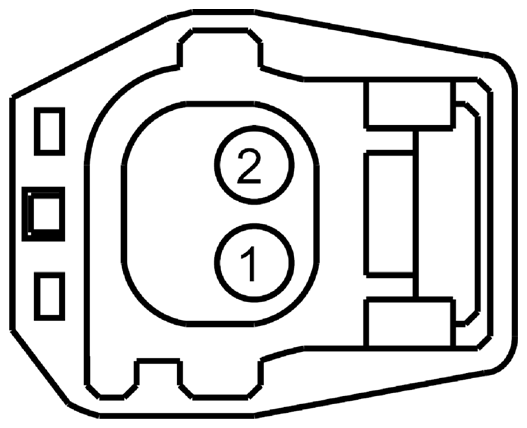

Fig 1: Identifying Hydraulic Solenoid Valve, Left Front Connector (C1668)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCD03 (WH-BU)	18	CTRL MOD. - CDC # VALVE DAMPER FRONT LEFT +
2	RCD03 (VT-BN)	18	CTRL MOD. - CDC # VALVE DAMPER FRONT LEFT -

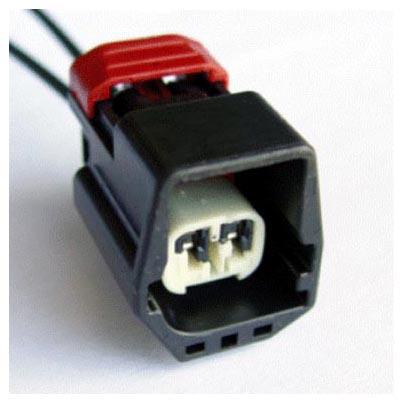

Available Pigtail Kits
Pigtail Kit Part Number WPT-273	Service Part Number: 3U2Z-14S411-GVA  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses Sensor - Ambient Temp Sensor - Heated Thermostat
