High Current Battery Junction Box (BJB) Connector End View (C1617K)

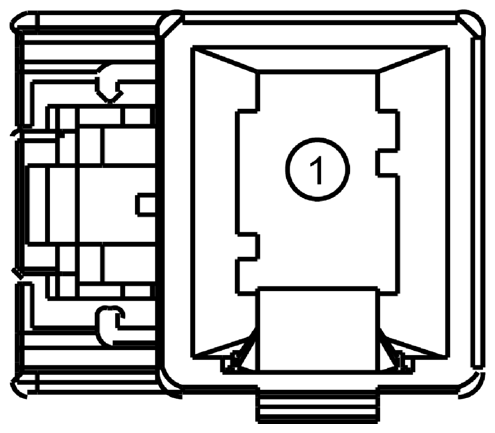

Fig 1: Identifying High Current Battery Junction Box Connector (C1617K)
G09278546Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 SBF05 (GY-RD) 8 FUSE - 5
