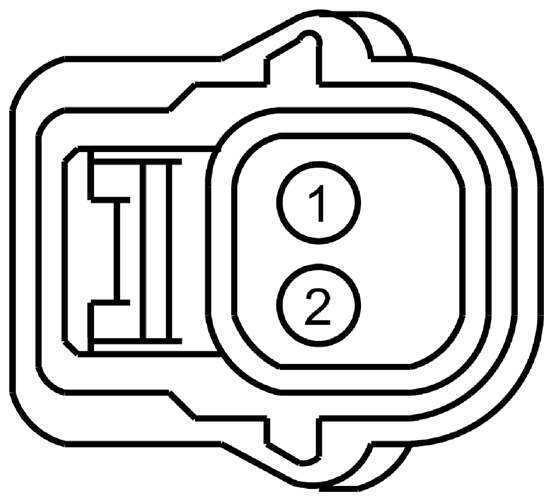

Heater Core Shutoff Connector End View (C1914)

Fig 1: Identifying Heater Core Shutoff Connector (C1914)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	18	FUSE - 8 OR CIRCUIT BREAKER (VPWR 2)
2	CH116 (YE-GN)	18	CTRL MOD. - CLIMATE # WATER SHUT OFF VALVE

Available Pigtail Kits

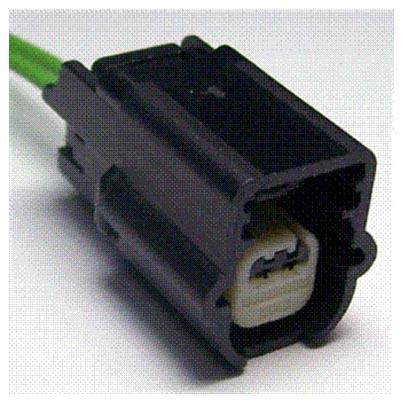

Pigtail Kit Part Number WPT-1314	Service Part Number: 8U2Z-14S411-AAC  Gauge: 20  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Solenoid - Torque Control Coupling Valve - Heated PCV Valve - Heater Core Shut Off Valve - Transmission Fluid Warmer
