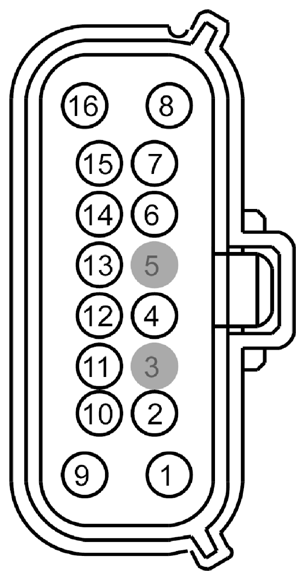

Headlamp Assembly RH Connector End View (C1510A)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CLS05 (BU-GY) | 20 | CTRL MOD. - PARK | |
| 2 | CLF03 (VT-OG) | 20 | CTRL MOD. - BEAM HIGH RIGHT | |
| 3 | * | * | Not Used | |
| 4 | CBB20 (YE-VT) | 20 | FUSE - 20 OR CIRCUIT BREAKER | |
| 5 | * | * | Not Used | |
| 6 | CLF05 (BU-GN) | 20 | CTRL MOD. - BEAM LOW RIGHT | |
| 7 | CLS25 (YE-VT) | 20 | CTRL MOD. - TURN LAMP RIGHT FRONT | FUSION |
| 7 | CLS25 (YE-VT) | 22 | CTRL MOD. - TURN LAMP RIGHT FRONT | MKZ |
| 8 | CLS07 (BN-YE) | 22 | CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT | |
| 9 | GD123 (BK-GY) | 18 | GROUND - FENDER FRONT RIGHT | |
| 10 | CLF62 (VT-WH) | 20 | CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT | |
| 11 | CLS58 (BU-WH) | 22 | LAMP - TURN FRONT RIGHT # SIGNAL OUT | |
| 12 | GD123 (BK-GY) | 18 | GROUND - FENDER FRONT RIGHT | |
| 13 | VLF33 (BU) | 20 | CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT RIGHT (LIN BUS) + | |
| 14 | CLS07 (BN-YE) | 20 | CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT | |
| 15 | GD123 (BK-GY) | 20 | GROUND - FENDER FRONT RIGHT | |
| 16 | GD123 (BK-GY) | 18 | GROUND - FENDER FRONT RIGHT |

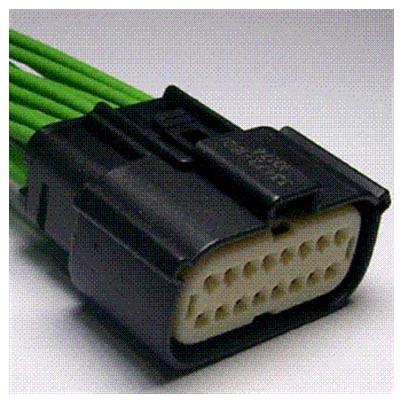

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1279 | Service Part Number: CU2Z-14S411-ADA Gauge: 16 Pin material: Silver Cavities: 16 Vehicle Uses
|
