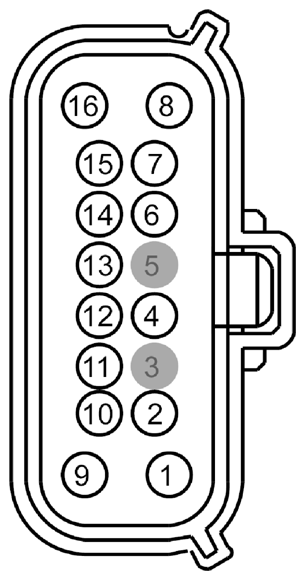

Headlamp Assembly LH Connector End View (C1509A)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CLS05 (BU-GY) | 20 | CTRL MOD. - PARK | |
| 2 | CLF02 (GY-BN) | 20 | CTRL MOD. - BEAM HIGH LEFT | |
| 3 | * | * | Not Used | |
| 4 | CBB20 (YE-VT) | 20 | FUSE - 20 OR CIRCUIT BREAKER | |
| 5 | * | * | Not Used | |
| 6 | CLF04 (BN-BU) | 20 | CTRL MOD. - BEAM LOW LEFT | |
| 7 | CLS21 (BU-GN) | 20 | CTRL MOD. - TURN LAMP LEFT FRONT | FUSION |
| 7 | CLS21 (BU-GN) | 22 | CTRL MOD. - TURN LAMP LEFT FRONT | MKZ |
| 8 | CLS06 (GN-OG) | 22 | CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT | |
| 9 | GD120 (BK-GN) | 18 | GROUND - FENDER FRONT LEFT | |
| 10 | CLF61 (GY-BU) | 20 | CTRL MOD. - DAYTIME RUNNING LIGHT LEFT | |
| 11 | CLS56 (YE-GN) | 22 | LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT | |
| 12 | GD120 (BK-GN) | 18 | GROUND - FENDER FRONT LEFT | |
| 13 | VLF32 (YE) | 20 | CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT LEFT (LIN BUS) + | |
| 14 | CLS06 (GN-OG) | 22 | CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT | |
| 15 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT | |
| 16 | GD120 (BK-GN) | 18 | GROUND - FENDER FRONT LEFT |

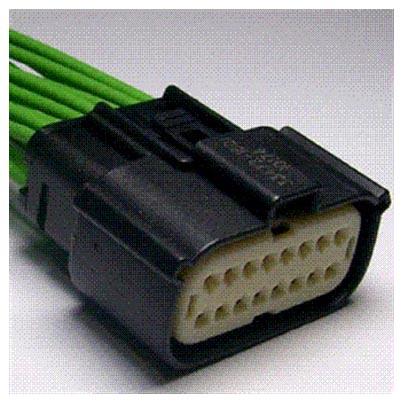

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1279 | Service Part Number: CU2Z-14S411-ADA Gauge: 16 Pin material: Silver Cavities: 16 Vehicle Uses
|
