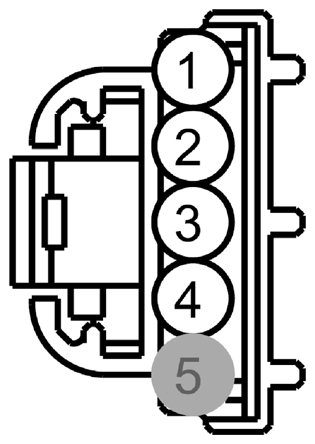

Head Up Display (HUD) Module Connector End View (C2395)

Fig 1: Identifying Head Up Display Module Connector (C2395)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD214 (BK-BU)	20	GROUND - INSTRUMENT PANEL STRUCTURE	FUSION
1	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE	MKZ
2	VDB26 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW
3	VDB25 (GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH
4	CBB23 (BN-YE)	22	FUSE - 23 OR CIRCUIT BREAKER	MKZ
4	CBB23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER	FUSION
5	*	*	Not Used

Available Pigtail Kits

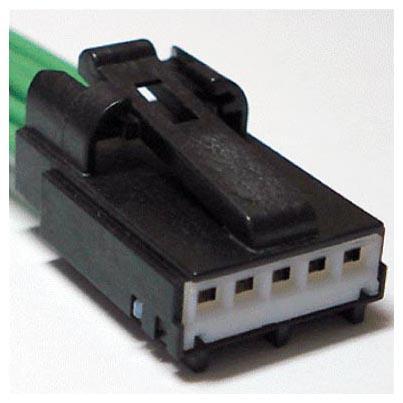

Pigtail Kit Part Number WPT-881	Service Part Number: 6U2Z-14S411-SA  Gauge: 18  Pin material: Tin  Cavities: 5  Vehicle Uses Mirror - Vanity Switch - Cold Engine Lockout Switch - Convertable Top

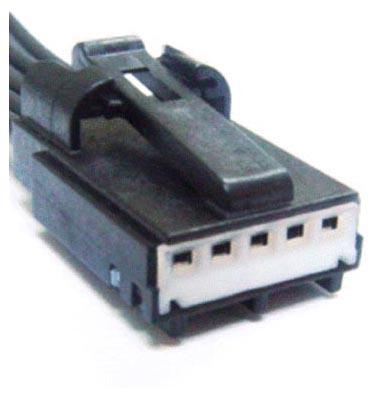

Pigtail Kit Part Number WPT-983	Service Part Number: 6U2Z-14S411-SB  Gauge: 18  Pin material: Silver  Cavities: 5  Vehicle Uses Module - Heads Up Display Switch - Overdrive Cancel Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front)
