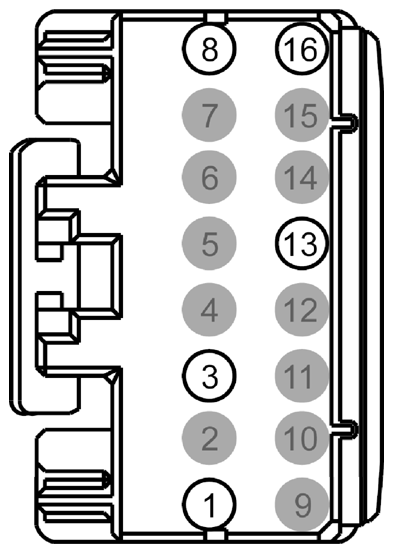

Global Positioning System Module (GPSM) Connector End View (C2482)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBP17 (RD) | 22 | FUSE - 17 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | CE436 (VT-OG) | 22 | CTRL MOD. -WAKE UP PCM | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | VDB25 (GN-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | GD215 (BK-GY) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | VDB26 (GY-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW |

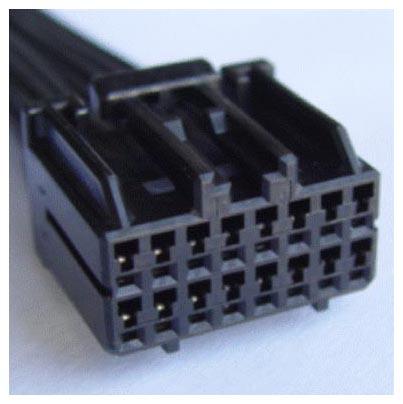

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-242 | Service Part Number: 3U2Z-14S411-EBA Gauge: 18 Pin material: Tin Cavities: 16 Vehicle Uses
|
