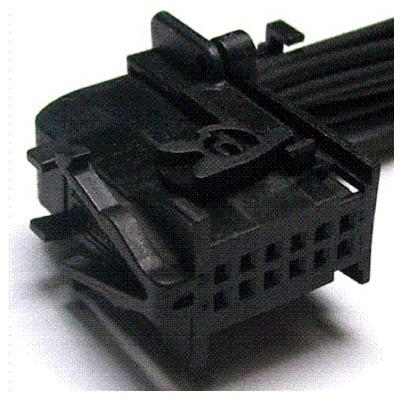

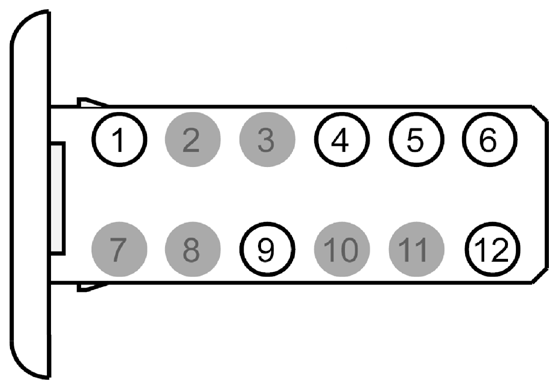

Front Control/Display Interface Module (FCDIM) Connector End View (C2123)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBP32 (VT-RD) | 20 | FUSE - 32 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | VDB29 (GN) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH | |
| 5 | VDB30 (WH) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW | |
| 6 | VMP19 (WH-GN) | 22 | CAMERA - PARKING AID REAR VIDEO + | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | GD215 (BK-GY) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | RMP19 (BN-VT) | 22 | CAMERA - PARKING AID REAR VIDEO - |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1278 | Service Part Number: CU2Z-14S411-ABA Gauge: 18 Pin material: Tin (greased) Cavities: 12 Vehicle Uses
|
