Front Active Park Assist Sensor LH Connector End View (C1607)

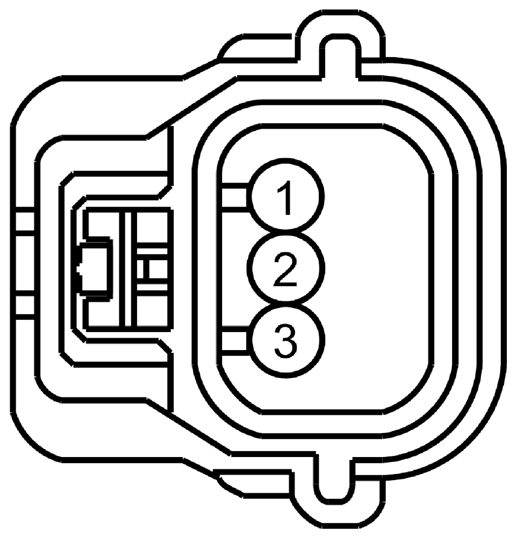

Fig 1: Identifying Front Active Park Assist Sensor LH Connector (C1607)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	LMP06 (VT-GY)	18	CTRL MOD. - PARKING AID # SENSORS FRONT +
2	VMP20 (GY-OG)	18	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE
3	RMP06 (YE-OG)	18	CTRL MOD. - PARKING AID # SENSORS FRONT -

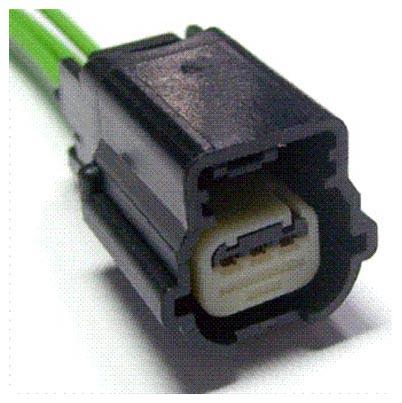

Available Pigtail Kits
Pigtail Kit Part Number WPT-1095	Service Part Number: AU2Z-14S411-AFA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Sensor - Front Park Aid (FPA)
