Electric Exhaust Gas RECIRCULATION (EEGR) Assembly Connector End View (C1746)

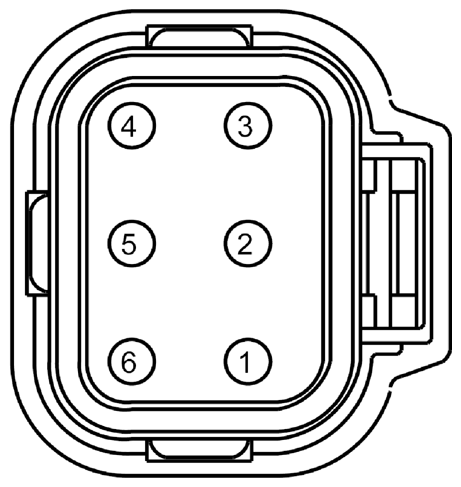

Fig 1: Identifying Electric Exhaust Gas Recirculation Assembly Connector (C1746)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE101 (WH-VT)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 1) (EGRMC1) (+)
2	CBK02 (GN)	18	FUSE - 8 OR CIRCUIT BREAKER (VPWR)
3	CE102 (YE-BU)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 2) (EGRMC2) (-)
4	CE103 (BU-BN)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 3) (EGRMC3)
5	CBK02 (GN)	18	FUSE - 8 OR CIRCUIT BREAKER (VPWR)
6	CE104 (GN-YE)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 4) (EGRMC4)

Available Pigtail Kits

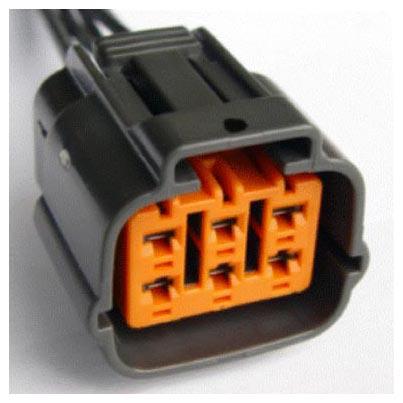

Pigtail Kit Part Number WPT-1115	Service Part Number: 3U2Z-14S411-BGAB  Gauge: 14  Pin material: Tin (greased)  Cavities: 6  Vehicle Uses Sensor - EGR Valve Position Valve - EGR

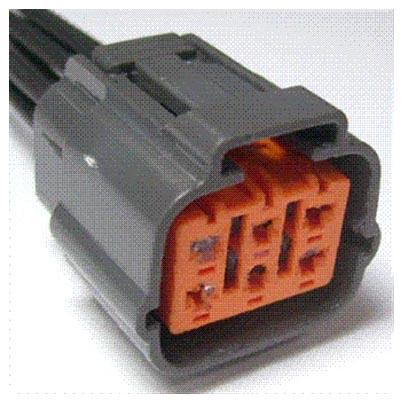

Pigtail Kit Part Number WPT-739	Service Part Number: 3U2Z-14S411-BGAA  Gauge: 18  Pin material: Tin  Cavities: 6  Vehicle Uses Relay - Trailer Tow
