Coil On Plug (Cop) 3 Connector End View (C1732)

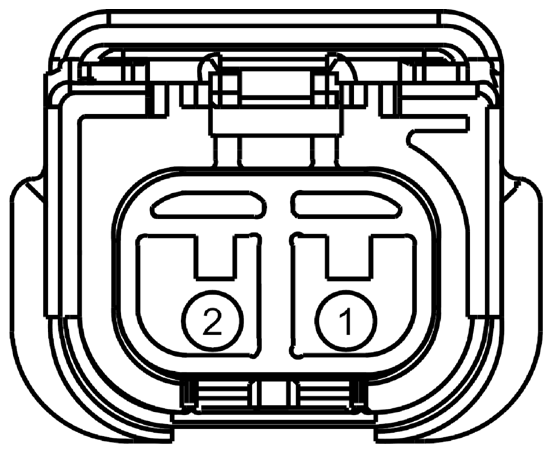

Fig 1: Identifying Coil On Plug 3 Connector (C1732)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE305 (BU-OG)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP3B)
2	CBK04 (VT)	16	FUSE - 11 OR CIRCUIT BREAKER (VPWR)

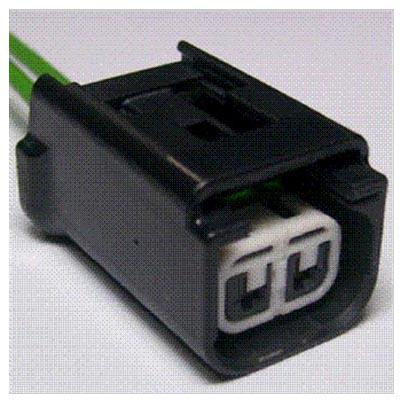

Available Pigtail Kits
Pigtail Kit Part Number WPT-1133	Service Part Number: BU2Z-14S411-FA  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Coil - Ignition
