Charge Port Light Ring Connector End View (C1806)

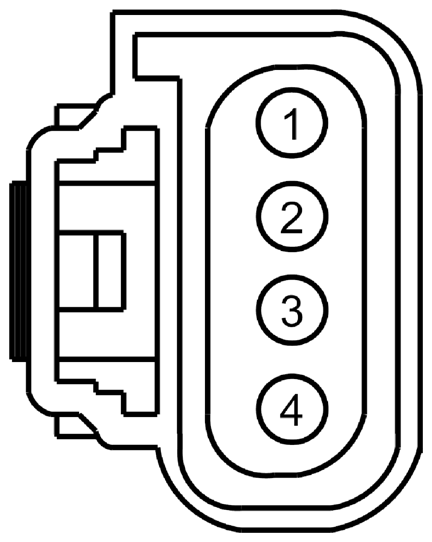

Fig 1: Identifying Charge Port Light Ring Connector (C1806)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB46 (BN-RD)	20	FUSE - 46 OR CIRCUIT BREAKER
2	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
3	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
4	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT

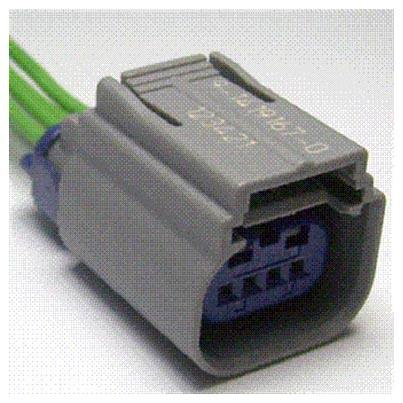

Available Pigtail Kits
Pigtail Kit Part Number WPT-1328	Service Part Number: DU2Z-14S411-AA  Gauge: 20  Pin material: Silver  Cavities: 4  Vehicle Uses Antenna - Keyless Entry Lamp - Charge Port
