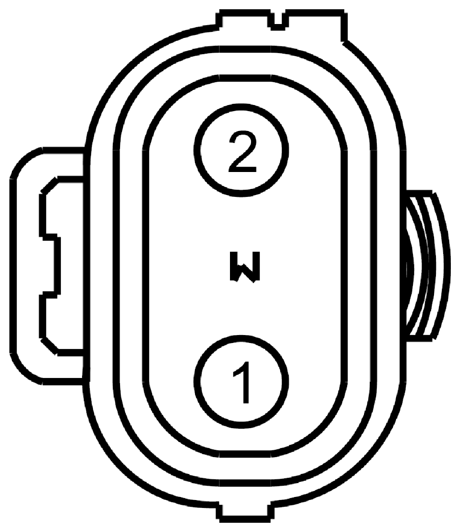

Brake Vacuum Pump Connector End View (C1560)

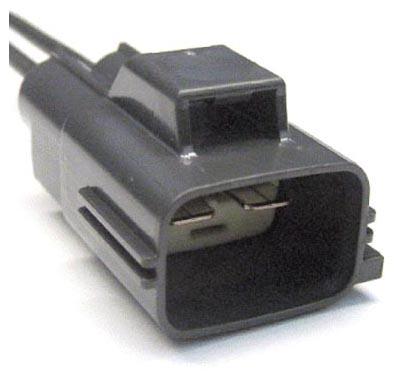

Fig 1: Identifying Brake Vacuum Pump Connector (C1560)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCB29 (WH-GN)	10	RELAY - VACUUM PUMP
2	GD120 (BK-GN)	10	GROUND - FENDER FRONT LEFT

Available Pigtail Kits
Pigtail Kit Part Number WPT-916	Service Part Number: 8U2Z-14S411-PA  Gauge: 12  Pin material: Tin  Cavities: 2  Vehicle Uses Pump - Vacuum
