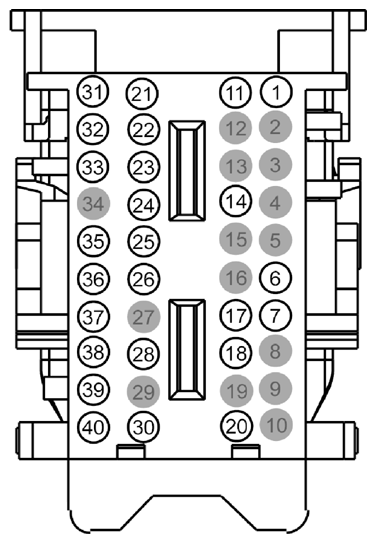

| 1 |
VMP21 (WH-BN) |
22 |
SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
CLS56 (YE-GN) |
22 |
LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT |
|
| 7 |
LMP06 (VT-GY) |
22 |
CTRL MOD. - PARKING AID # SENSORS FRONT + |
|
| 8 |
* |
* |
Not Used |
|
| 9 |
* |
* |
Not Used |
|
| 10 |
* |
* |
Not Used |
|
| 11 |
VMP20 (GY-OG) |
22 |
SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
CPL25 (BU-OG) |
22 |
SWITCH - HOOD # AJAR |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
* |
* |
Not Used |
|
| 17 |
CLS58 (BU-WH) |
22 |
LAMP - TURN FRONT RIGHT # SIGNAL OUT |
|
| 18 |
CE436 (VT-OG) |
22 |
CTRL MOD. -WAKE UP PCM |
|
| 19 |
* |
* |
Not Used |
|
| 20 |
CRH02 (BU-WH) |
20 |
SWITCH - HORN |
|
| 21 |
VMP13 (BU-OG) |
22 |
SENSOR - PARKING AID # FRONT # (RIGHT OUTER) |
|
| 22 |
VMP12 (BU-GY) |
22 |
SENSOR - PARKING AID # FRONT # (RIGHT INNER) |
|
| 23 |
CDC71 (YE-GY) |
20 |
CTRL MOD. - POWER OUTLET ENABLE OR SET |
|
| 24 |
CDC40 (VT-GY) |
20 |
RELAY - DELAY ACCESSORY |
|
| 25 |
CDC55 (BN-VT) |
20 |
RELAY - RUN, START |
|
| 26 |
CE226 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + |
|
| 27 |
* |
* |
Not Used |
|
| 28 |
CMC19 (GY-VT) |
20 |
SWITCH - LOW LEVEL BRAKE FLUID |
|
| 29 |
* |
* |
Not Used |
|
| 30 |
CLS06 (GN-OG) |
20 |
CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT |
|
| 31 |
VMP11 (BU-GN) |
22 |
SENSOR - PARKING AID # FRONT # (LEFT OUTER) |
|
| 32 |
VMP10 (WH-BU) |
22 |
SENSOR - PARKING AID # FRONT # (LEFT INNER) |
|
| 33 |
CDC72 (BN-WH) |
20 |
CTRL MOD. - POWER OUTLET DISABLE OR RESET |
|
| 34 |
* |
* |
Not Used |
|
| 35 |
RMP06 (YE-OG) |
22 |
CTRL MOD. - PARKING AID # SENSORS FRONT - |
|
| 36 |
CLF62 (VT-WH) |
20 |
CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT |
|
| 37 |
CLS07 (BN-YE) |
20 |
CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT |
|
| 38 |
CLS25 (YE-VT) |
20 |
CTRL MOD. - TURN LAMP RIGHT FRONT |
FUSION |
| 38 |
CLS25 (YE-VT) |
22 |
CTRL MOD. - TURN LAMP RIGHT FRONT |
MKZ |
| 39 |
CLS21 (BU-GN) |
20 |
CTRL MOD. - TURN LAMP LEFT FRONT |
FUSION |
| 39 |
CLS21 (BU-GN) |
22 |
CTRL MOD. - TURN LAMP LEFT FRONT |
MKZ |
| 40 |
CLF61 (GY-BU) |
20 |
CTRL MOD. - DAYTIME RUNNING LIGHT LEFT |
|
