Air Conditioning Control Module (ACCM) Connector End View (C2251)

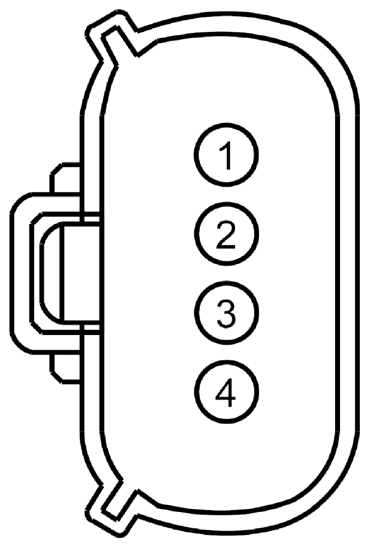

Fig 1: Identifying Air Conditioning Control Module Connector (C2251)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB54 (VT-OG)	18	FUSE - 55 OR CIRCUIT BREAKER
2	VDB04 (WH-BU)	18	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
3	VDB05 (WH)	18	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
4	GD113 (BK-YE)	18	GROUND - COWL TOP RIGHT

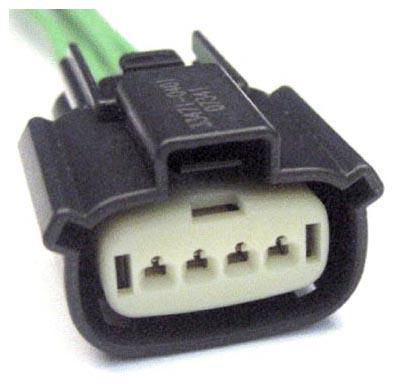

Available Pigtail Kits
Pigtail Kit Part Number WPT-925	Service Part Number: 8U2Z-14S411-TA  Gauge: 14  Pin material: Silver  Cavities: 4  Vehicle Uses A/C Compressor Clutch Lamp - Headlamp - High/Low Beam
