Accelerator Pedal Position (App) Sensor Connector End View (C2040)

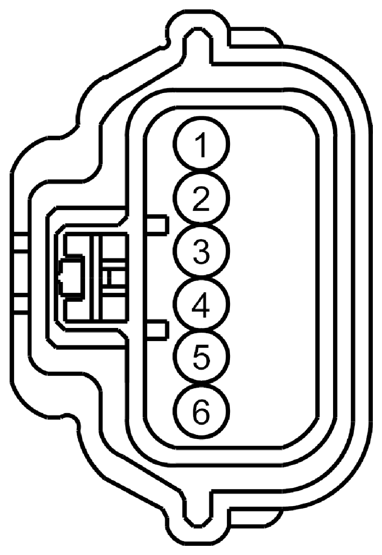

Fig 1: Identifying Accelerator Pedal Position Sensor Connector (C2040)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE136 (GN-OG)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPVREF1)
2	VE701 (YE-OG)	20	SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1)
3	RE136 (VT-GN)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPRTN1)
4	RE137 (YE-GN)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPRTN2)
5	VE702 (BU-WH)	20	SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2)
6	LE137 (BU-GY)	20	L MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPVREF2)

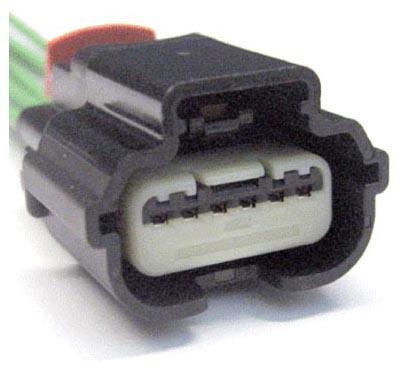

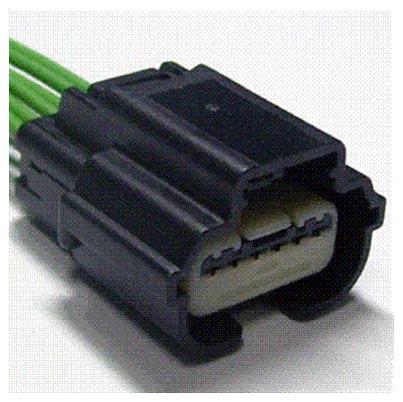

Available Pigtail Kits
Pigtail Kit Part Number WPT-1338	Service Part Number: 9U2Z-14S411-BB  Gauge: 20  Pin material: Silver  Cavities: 6  Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Module - Occupant Classification Sensor - Acceleration Pedal Position Sensor - Transmission Range Switch - Door Ajar/Interior Lamp
Pigtail Kit Part Number WPT-929	Service Part Number: 9U2Z-14S411-BA  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Sensor - Acceleration Pedal Position Switch - Door Ajar/Interior Lamp
