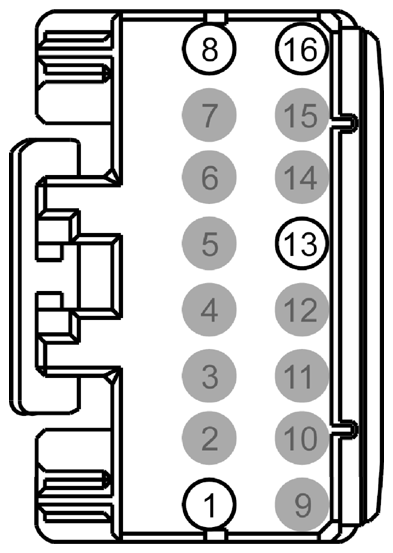

TELEMATIC Control Unit Module (TCU) Connector End View (C4803)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBP10 (YE-RD) | 20 | FUSE - 10 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | VDB29 (GN-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | GD313 (BK-GN) | 22 | GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | VDB30 (WH-GN) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW |

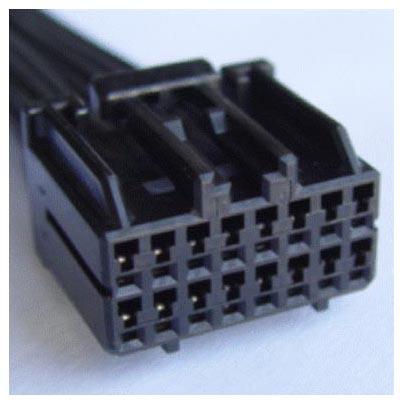

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-242 | Service Part Number: 3U2Z-14S411-EBA Gauge: 18 Pin material: Tin Cavities: 16 Vehicle Uses
|
