Splice Block 39 Connector End View (C4390)

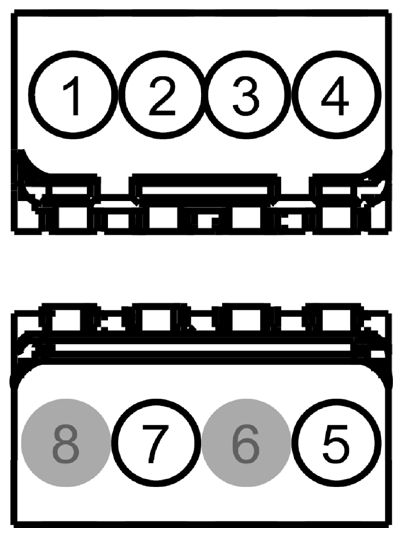

Fig 1: Identifying Splice Block 39 Connector (C4390)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDB29 (GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH
2	VDB29 (GN-WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	FUSION HEV
2	VDB29 (GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	PHEV
3	VDB30 (WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW
4	VDB30 (WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW
5	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH
6	*	*	Not Used
7	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW
8	*	*	Not Used
