Splice Block 14 Connector End View (C9229)

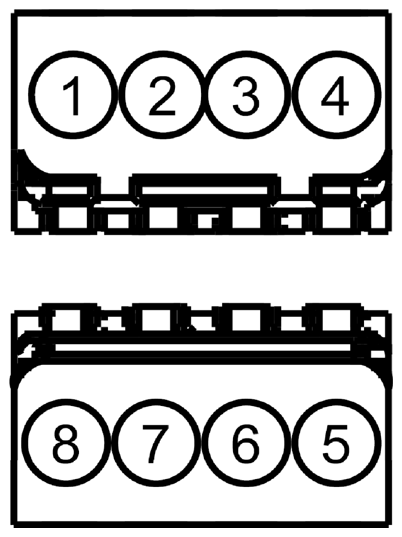

Fig 1: Identifying Splice Block 14 Connector (C9229)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
2	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
3	GD383 (BK-WH)	22	GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT
4	GD383 (BK-WH)	22	GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT
5	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
6	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
7	GD383 (BK-WH)	22	GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT
8	GD383 (BK-WH)	22	GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT
