Power Striker Module Connector End View (C4824)

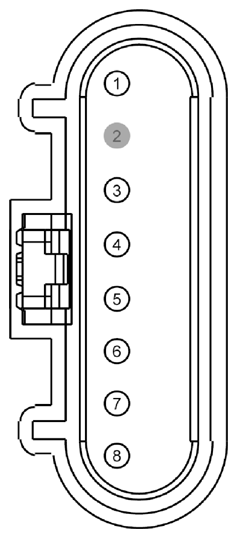

Fig 1: Identifying Power Striker Module Connector (C4824)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	SBB80 (VT-RD)	14	FUSE - 80 OR CIRCUIT BREAKER
2	*	*	Not Used
3	GD347 (BK-VT)	14	GROUND - PILLAR C OR QUARTER PANEL LEFT
4	CPR65 (BU-GN)	22	LATCH - LIFTGATE # LATCH SWITCH FULL
5	CPR72 (GN-BU)	22	CTRL MOD. - POWER LIFTGATE # MOTOR STRIKER (-)
6	CLN13 (WH-BU)	22	SWITCH - TRUNK/CARGO LAMP
7	CPR61 (BN)	22	CTRL MOD. - POWER LIFTGATE # CINCH +
8	CPR71 (GY-BN)	22	CTRL MOD. - POWER LIFTGATE # MOTOR STRIKER (+)

Available Pigtail Kits
Pigtail Kit Part Number WPT-1366	Service Part Number: 3U2Z-14S411-MBB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Module - Liftgate Switch - Door Ajar/Interior Lamp Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Sliding Door Contact
