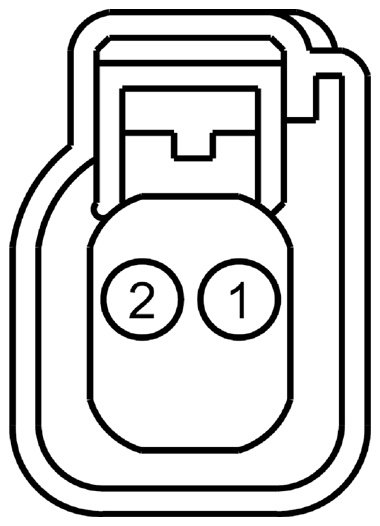

Evaporative Emission (EVAP) Vapor Blocking Valve Connector End View (C4287)

Fig 1: Identifying Evaporative Emission Vapor Blocking Valve Connector (C4287)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE420 (GY-VT)	20	EVAPORATIVE EMISSION (EVAP) VAPOR BLOCKING VALVE (VBV)
2	CBK02 (GN)	18	FUSE - 8 OR CIRCUIT BREAKER (VPWR 2)

Available Pigtail Kits

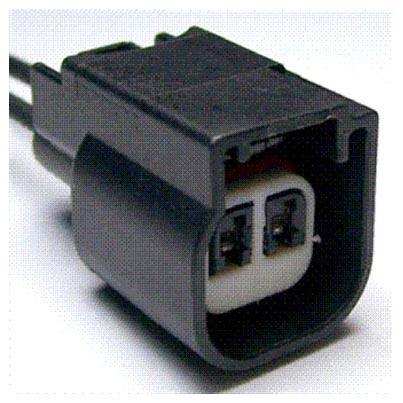

Pigtail Kit Part Number WPT-1243

Service Part Number: 3U2Z-14S411-RPC  Gauge: 16  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Rear Handle - Decklid Lamp - Headlamp - High/Low Beam Lamp - Headlamp - Low Beam Lamp - License Lamp - Rear Turn Lamp - Side Marker Sensor - Knock Sensor - Seat Track Position Sensor - Throttle Position Sensor - Turbine Shaft Speed Sensor - Water in Fuel Switch - Deck Lid/Lift Gate Ajar Switch - Door Ajar/Interior Lamp Switch - Hood Ajar Switch - Lift Gate Glass Ajar Switch - Stop Lamp Valve - Vapor Management
