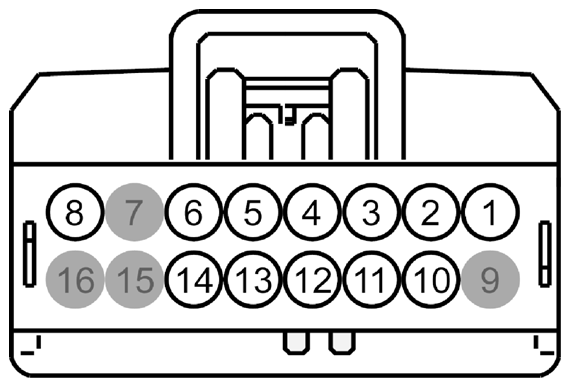

| 1 |
GD313 (BK-GN) |
18 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT |
|
| 2 |
SME56 (BN) |
22 |
CTRL MOD. - AUDIO # SUBWOOFER 2ND ENABLE |
|
| 3 |
VME07 (WH) |
22 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) + |
base - MKZ |
| 3 |
VME17 (GN) |
22 |
CTRL MOD. - AUDIO # RADIO LEFT + |
THX audio |
| 3 |
VME07 (WH) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) + |
mid - FUSION |
| 3 |
VME58 (YE-BU) |
26 |
CTRL MOD. - AUDIO # OUTPUT LEFT 2 + |
Sony audio - HEV |
| 3 |
VME58 (YE) |
26 |
CTRL MOD. - AUDIO # OUTPUT LEFT 2 + |
PHEV |
| 4 |
VME09 (WH-GN) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) + |
mid - FUSION |
| 4 |
VME79 (WH) |
26 |
SPEAKER - LEFT REAR + |
Sony audio - HEV |
| 4 |
VME79 (GY) |
26 |
SPEAKER - LEFT REAR + |
PHEV |
| 4 |
VME09 (WH-GN) |
22 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) + |
base - MKZ |
| 4 |
VME92 (WH-GN) |
22 |
CTRL MOD. - AUDIO HEAD UNIT # ALERT OUT (+) |
THX audio |
| 5 |
VME10 (WH-VT) |
22 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) + |
base - MKZ |
| 5 |
VME18 (VT) |
22 |
CTRL MOD. - AUDIO # RADIO RIGHT + |
THX audio |
| 5 |
VME10 (WH-VT) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) + |
mid - FUSION |
| 5 |
VME59 (YE) |
26 |
CTRL MOD. - AUDIO # OUTPUT RIGHT 2 + |
Sony audio |
| 6 |
VME12 (BN-WH) |
22 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) + |
MKZ |
| 6 |
VME12 (BN-WH) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) + |
FUSION |
| 7 |
* |
* |
Not Used |
|
| 8 |
CBP33 (VT-WH) |
18 |
FUSE - 33 OR CIRCUIT BREAKER |
|
| 9 |
* |
* |
Not Used |
|
| 10 |
DME17 (*) |
20 |
CTRL MOD. - AUDIO # RADIO D |
MKZ |
| 10 |
DME58 (*) |
20 |
CTRL MOD. - AUDIO # OUTPUT 2 |
FUSION |
| 11 |
RME07 (WH-BN) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) - |
mid - FUSION |
| 11 |
RME58 (BN) |
26 |
CTRL MOD. - AUDIO # OUTPUT LEFT 2 - |
Sony audio |
| 11 |
RME07 (WH-BN) |
22 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) - |
base - MKZ |
| 11 |
RME17 (GY) |
22 |
CTRL MOD. - AUDIO # RADIO LEFT - |
THX audio |
| 12 |
RME09 (BN-YE) |
22 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) - |
base - MKZ |
| 12 |
RME92 (WH-OG) |
22 |
CTRL MOD. - AUDIO HEAD UNIT # ALERT OUT - |
THX audio |
| 12 |
RME09 (BN-YE) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) - |
mid - FUSION |
| 12 |
RME79 (GY-BN) |
26 |
SPEAKER - LEFT REAR - |
Sony audio - HEV |
| 12 |
RME79 (BN) |
26 |
SPEAKER - LEFT REAR - |
PHEV |
| 13 |
RME10 (WH-OG) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) - |
mid - FUSION |
| 13 |
RME59 (GN) |
26 |
CTRL MOD. - AUDIO # OUTPUT RIGHT 2 - |
Sony audio - HEV |
| 13 |
RME59 (WH) |
26 |
CTRL MOD. - AUDIO # OUTPUT RIGHT 2 - |
PHEV |
| 13 |
RME10 (WH-OG) |
22 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) - |
base - MKZ |
| 13 |
RME18 (YE) |
22 |
CTRL MOD. - AUDIO # RADIO RIGHT - |
THX audio |
| 14 |
RME12 (BN-BU) |
22 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) - |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
* |
* |
Not Used |
|
