Charger Cooling Actuator Connector End View (C4457)

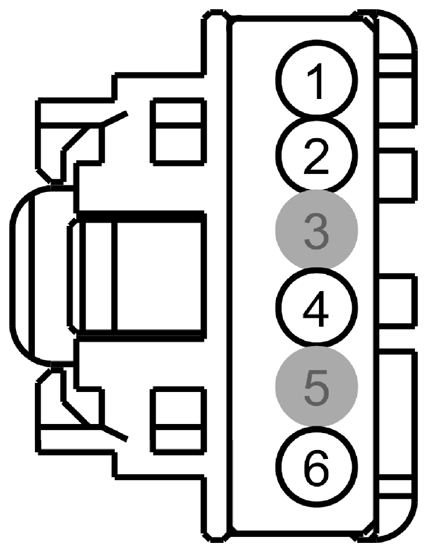

Fig 1: Identifying Charger Cooling Actuator Connector (C4457)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CYB13 (BU-GN)	22	CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY DOOR MOTOR CLOSE (IF PLUS)
2	RYB07 (GY-YE)	20	CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY COMPARTMENT THERMISTOR (TXV_TEMP_RTN)
3	*	*	Not Used
4	CYB10 (BU-WH)	22	CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY DOOR POSITION SENSOR +
5	*	*	Not Used
6	CYB12 (YE-GN)	22	CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY DOOR MOTOR OPEN (IF PLUS)

Available Pigtail Kits
Pigtail Kit Part Number WPT-1249	Service Part Number: 3U2Z-14S411-BYAC  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Lamp - Dome Lamp - Storage Compartment - Cargo Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Inlet Door Switch - Hazard Warning Switch - Heated Seat Switch - Heater A/C Blower (Rear) Switch - Speed Control
Pigtail Kit Part Number WPT-956	Service Part Number: 3U2Z-14S411-BYAB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Inlet Door Switch - Hazard Warning Switch - Heated Seat - LH - Front Switch - Heated Seat - LH - Rear Switch - Heated Seat - RH - Front Switch - Heated Seat - RH - Rear Switch - Heater A/C Blower (Rear)
