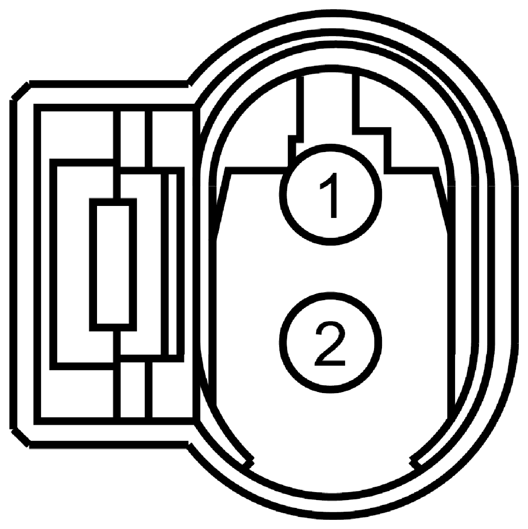

Battery Monitoring Sensor Connector End View (C4433)

Fig 1: Identifying Battery Monitoring Sensor Connector (C4433)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDN03 (GY-VT)	20	CTRL MOD. - LIN BUS # SPDJB 3
2	SDC02 (RD)	18	BATTERY - # PLUS

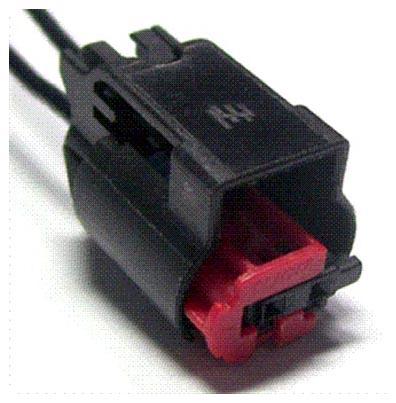

Available Pigtail Kits
Pigtail Kit Part Number WPT-1150	Service Part Number: AU2Z-14S411-AYA  Gauge: 18  Pin material: Tin  Cavities: 2  Vehicle Uses Lamp - Reverse
