Battery Energy Control Module (BECM) Connector End View (C4816D)

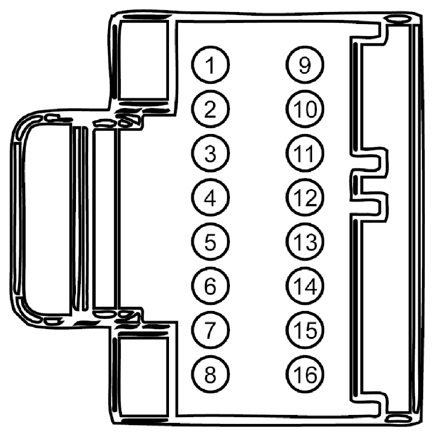

Fig 1: Identifying Battery Energy Control Module Connector (C4816D)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VYB33 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 1	PHEV
2	VYB34 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 2	PHEV
3	VYB35 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 3	PHEV
4	VYB36 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 4	PHEV
5	VYB37 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 5	PHEV
6	VYB38 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 6	PHEV
7	VYB39 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 7	PHEV
8	VYB40 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 8	PHEV
9	RYB33 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 1	PHEV
10	RYB34 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 2	PHEV
11	RYB35 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 3	PHEV
12	RYB36 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 4	PHEV
13	RYB37 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 5	PHEV
14	RYB38 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 6	PHEV
15	RYB39 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 7	PHEV
16	RYB40 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 8	PHEV
