Battery Energy Control Module (BECM) Connector End View (C4816C)

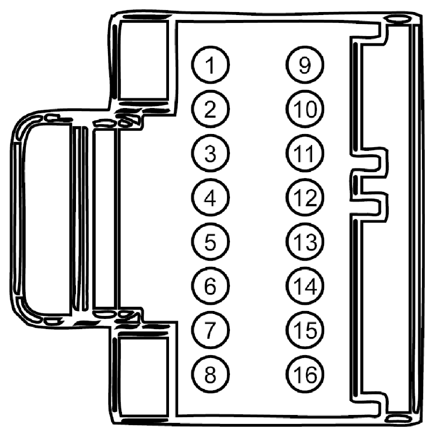

Fig 1: Identifying Battery Energy Control Module Connector (C4816C)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VYB41 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 9	PHEV
2	VYB42 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 10	PHEV
3	VYB43 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 11	PHEV
4	VYB44 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 12	PHEV
5	VYB45 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 13	PHEV
6	VYB46 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 14	PHEV
7	VYB47 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 15	PHEV
8	VYB48 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 16	PHEV
9	RYB41 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 9	PHEV
10	RYB42 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 10	PHEV
11	RYB43 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 11	PHEV
12	RYB44 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 12	PHEV
13	RYB45 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 13	PHEV
14	RYB46 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 14	PHEV
15	RYB47 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 15	PHEV
16	RYB48 (BK)	22	THERMISTOR - HIGH VOLTAGE BATTERY 16	PHEV
