Battery Charging Control Module (BCCM) Connector End View (C4455A)

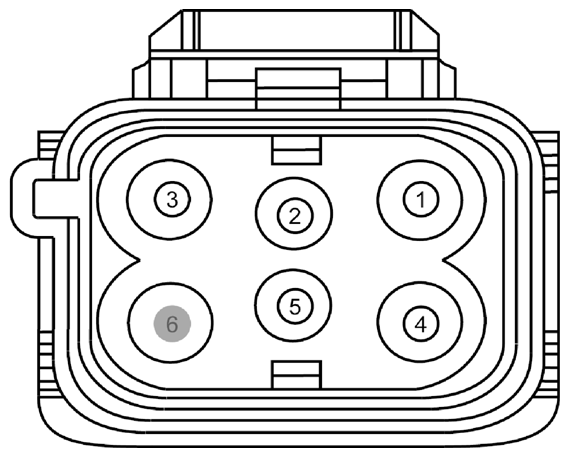

Fig 1: Identifying Battery Charging Control Module Connector (C4455A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RYB57 (GN-YE)	10	GROUND - CHARGER AC/BOND
2	CYB56 (WH-VT)	20	PORT - HIGH VOLTAGE BATTERY CHARGER INLET # CONTROL PILOT
3	HYB53 (OG)	10	PORT - HIGH VOLTAGE BATTERY CHARGER INLET 1 (L1)
4	HYB54 (OG)	10	PORT - HIGH VOLTAGE BATTERY CHARGER INLET 2 (L2)
5	CYB55 (YE-GY)	20	PORT - HIGH VOLTAGE BATTERY CHARGER INLET # PROXIMITY DETECTION
6	*	*	Not Used
