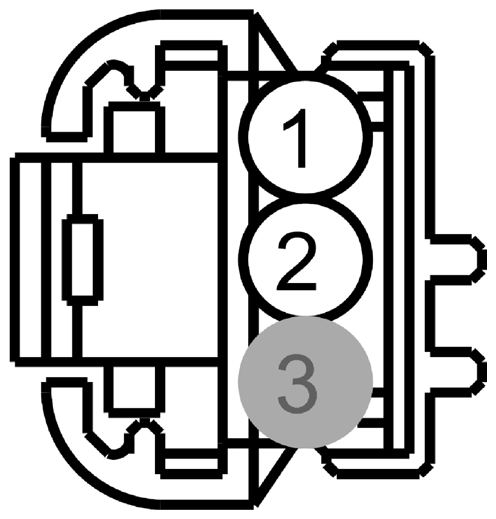

Active Noise Control Microphone-1 Connector End View (C9228)

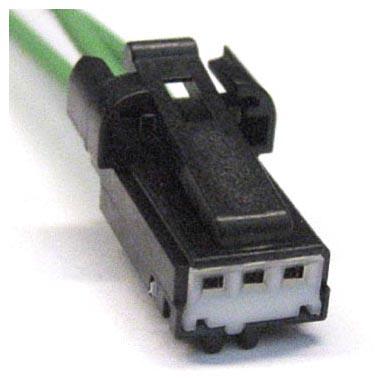

Fig 1: Identifying Active Noise Control Microphone-1 Connector (C9228)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	VME99 (VT)	26	MICROPHONE - AMBIENT NOISE 2 +
2	RME99 (YE)	26	MICROPHONE - AMBIENT NOISE 2 -
3	*	*	Not Used

Available Pigtail Kits
Pigtail Kit Part Number WPT-911	Service Part Number: 8U2Z-14S411-LA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer
