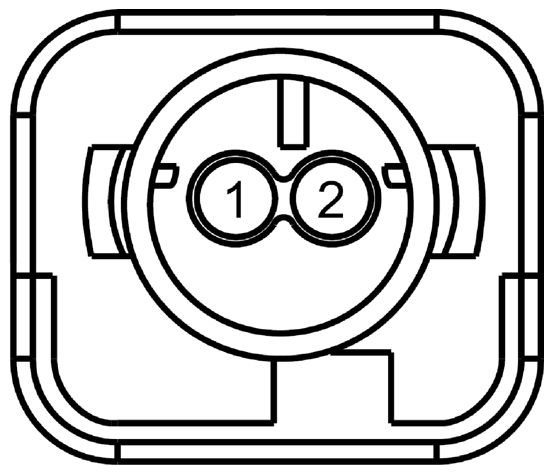

Side Airbag Module, Left Front Connector End View (C367)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CR106 (YE-OG) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER OUTBOARD + | |
| 2 | RR106 (VT-GY) | 20 | CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER OUTBOARD - |

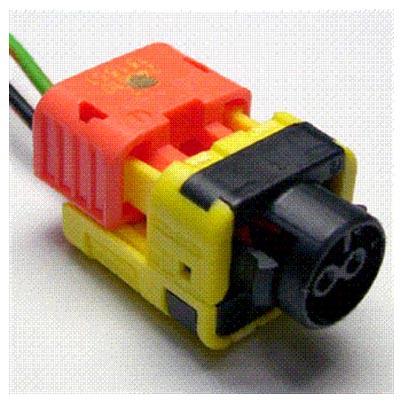

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1228 | Service Part Number: BU2Z-14S411-BMA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses
|
