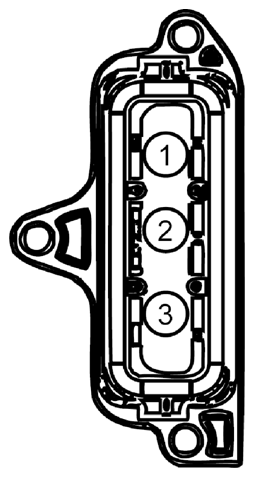

Secondary On Board Diagnostic Module C (SOBDMC)/Transmission Control Module (TCM) Connector End View (C1458C)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
HYA04 (WH-LB) |
20 |
MOTOR W PHASE (MWP) |
|
| 2 |
HYA05 (WH-OG) |
20 |
MOTOR V PHASE (MVP) |
|
| 3 |
HYA06 (WH-BU) |
20 |
MOTOR U PHASE (MUP) |
|
