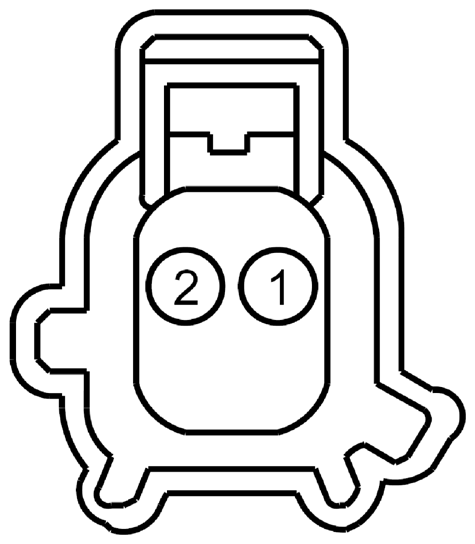

Passenger Door Side Impact Sensor Connector End View (C644)

Fig 1: Identifying Passenger Door Side Impact Sensor Connector (C644)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VR218 (YE)	22	SENSOR - SIDE IMPACT FRONT PASSENGER SIDE	FUSION
1	VR222 (GY-OG)	22	SENSOR - SIDE IMPACT ROW 3 PASSENGER SIDE	MKZ
2	RR132 (BU)	22	CTRL MOD. - SENSOR SIDE IMPACT FRONT PASSENGER SIDE -	FUSION
2	RR136 (BN-WH)	22	CTRL MOD. - SENSOR SIDE IMPACT ROW 3 PASSENGER SIDE -	MKZ

Available Pigtail Kits

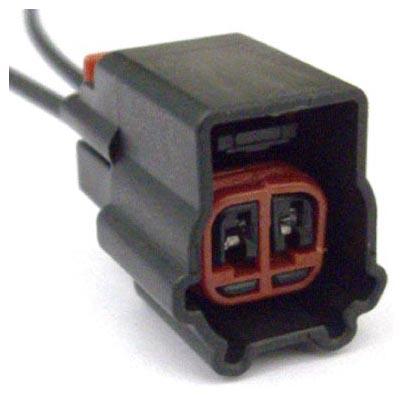

Pigtail Kit Part Number WPT-837	Service Part Number: 4U2Z-14S411-RA  Gauge: 16  Pin material: Gold  Cavities: 2  Vehicle Uses Fuel Pump/Sending Unit

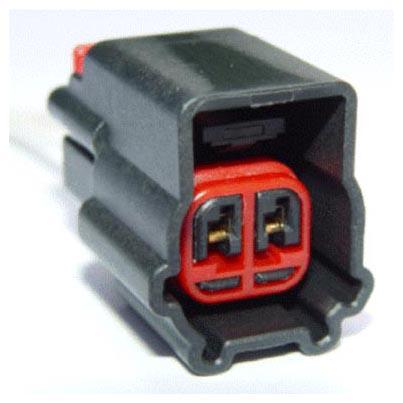

Pigtail Kit Part Number WPT-948	Service Part Number: 3U2Z-14S411-EKB  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Motor - Windshield Washer Fluid Pump Sensor - Side Impact
