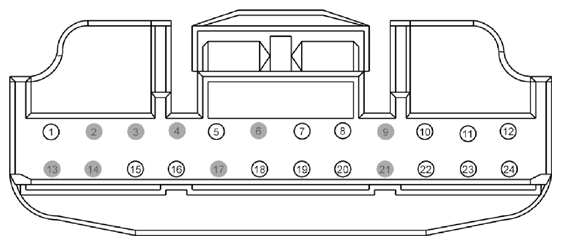

| 1 |
GD383 (BK-WH) |
22 |
GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT |
MKZ |
| 1 |
GD382 (BK-GY) |
22 |
GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT |
FUSION |
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
CLN70 (BN-VT) |
22 |
SWITCH - OVERHEAD CONSOLE # EXTERNAL CONTROL 1 |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
VME96 (GN-WH) |
22 |
CTRL MOD. - AUDIO # SPEAKER CENTER FRONT TWEETER + |
|
| 8 |
RME96 (GY-VT) |
22 |
CTRL MOD. - AUDIO # SPEAKER CENTER FRONT TWEETER - |
|
| 9 |
* |
* |
Not Used |
|
| 10 |
VLN04 (VT-GY) |
22 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
|
| 11 |
VLN33 (GY-VT) |
22 |
CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) |
|
| 12 |
CLN09 (YE-GN) |
22 |
RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
CLN68 (BU-BN) |
22 |
SWITCH - OVERHEAD CONSOLE # OUTPUT 1 (OUTPUT_1_SW) |
|
| 16 |
CLN69 (GY-YE) |
22 |
SWITCH - OVERHEAD CONSOLE # OUTPUT 2 (OUTPUT_2_SW) |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
CPR31 (VT-BN) |
22 |
SWITCH - MOON/SUN ROOF OPEN |
|
| 19 |
CPR38 (WH-BU) |
22 |
SWITCH - MOON/SUN ROOF TILT |
|
| 20 |
CPR40 (YE-OG) |
22 |
SWITCH - MOON/SUN ROOF CLOSE |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
CPR86 (GY-BN) |
22 |
SWITCH - SHADE MOON/SUN ROOF OPEN |
without panoramic roof |
| 23 |
CPR87 (VT) |
22 |
SWITCH - SHADE REAR WINDOW CLOSE |
without panoramic roof |
| 24 |
CPR87 (VT) |
22 |
SWITCH - SHADE REAR WINDOW CLOSE |
panoramic roof |
