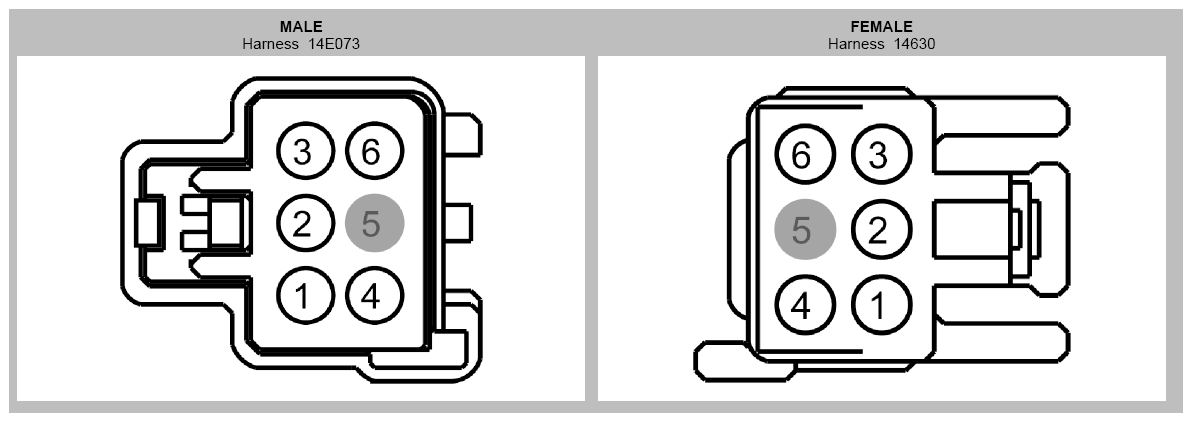

Inline Connector End View (C610)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | VDN05 (YE) | 22 | 14630 - FUSION |
| 1 | VDN05 (YE-GY) | 22 | 14630 - MKZ |
| 1 | VDN05 (YE-GY) | 22 | 14E073 |
| 1 | VDN05 (YE-GY) | 22 | 14E073 |
| 2 | CPL35 (BU) | 22 | |
| 3 | CB0X7 (GN-RD) | 22 | 14E073 |
| 3 | CB0X7 (GN-RD) | 22 | 14E073 |
| 3 | CBX07 (GN) | 22 | 14630 - FUSION |
| 3 | CBX07 (GN-RD) | 22 | 14630 - MKZ |
| 4 | GD383 (BK-WH) | 22 | 14630 |
| 4 | GD383 (BK-WH) | 22 | 14E073 |
| 4 | GD383 (BK-WH) | 22 | 14E073 |
| 4 | GD383 (BK-WH) | 22 | 14E073 |
| 5 | * | * | |
| 6 | CPL88 (VT) | 22 | 14E073 |
| 6 | CPL88 (VT) | 26 | 14630 |
