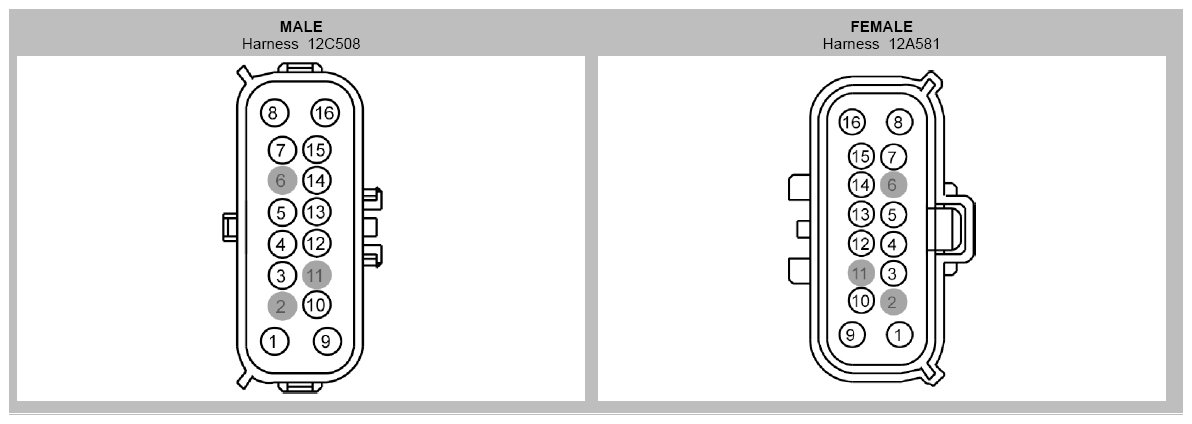

Inline Connector End View (C1026)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CBK04 (VT) | 14 | |
| 2 | * | * | |
| 3 | VMC02 (BU-WH) | 18 | |
| 4 | GD108 (BK-VT) | 18 | 12C508 |
| 4 | GD113 (BK-YE) | 18 | 12A581 |
| 5 | CE347 (BU-GN) | 18 | 12C508 |
| 5 | CE622 (BU-OG) | 20 | 12A581 |
| 6 | * | * | |
| 7 | CE347 (BU-GN) | 20 | 12A581 |
| 7 | CE622 (BU-OG) | 18 | 12C508 |
| 8 | LE458 (BU-WH) | 18 | 12C508 |
| 8 | LET57 (WH-GN) | 20 | 12A581 |
| 9 | CBK01 (BU) | 18 | 12C508 |
| 9 | CE608 (VT-GN) | 12 | 12A581 |
| 10 | CH307 (GY-BU) | 18 | 12C508 |
| 10 | CH307 (GY-BU) | 20 | 12A581 |
| 11 | * | * | 12A581 |
| 11 | CMP08 (GY-BN) | 18 | 12C508 |
| 12 | CE420 (GY-VT) | 18 | |
| 13 | VDN06 (WH-GN) | 18 | 12C508 |
| 13 | VDN06 (WH-GN) | 20 | 12A581 |
| 14 | LET57 (WH-GN) | 18 | 12C508 |
| 14 | VET57 (VT) | 20 | 12A581 |
| 15 | LET56 (BN-VT) | 18 | 12C508 |
| 15 | VET56 (WH) | 20 | 12A581 |
| 16 | CBK02 (GN) | 16 | 12A581 |
| 16 | CBK02 (GN) | 18 | 12C508 |

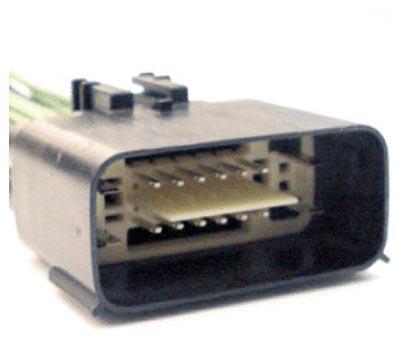

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-892 | Service Part Number: 7U2Z-14S411-KA Gauge: 12 16 Pin material: Tin & Silver Cavities: 16 Vehicle Uses:
|
