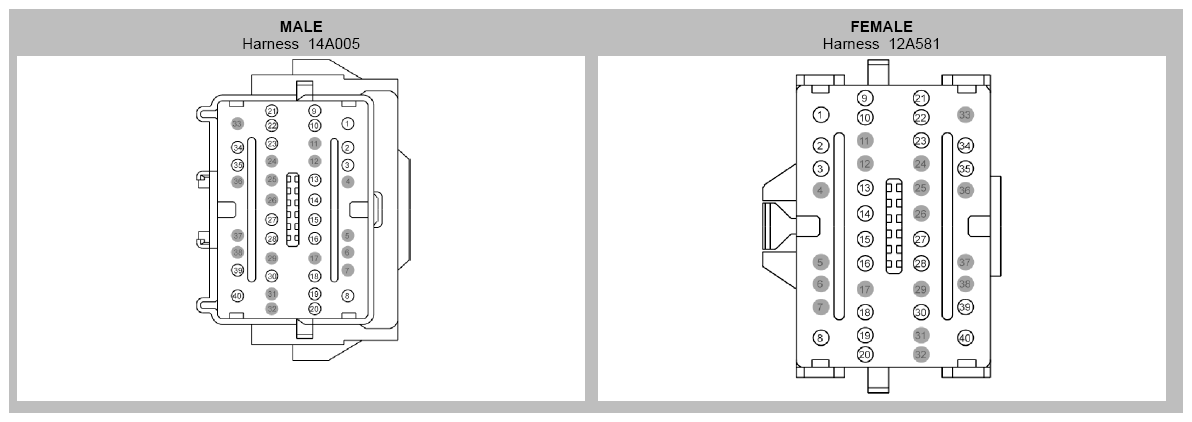

Inline Connector End View (C1010)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
VE922 (VT-GN) |
20 |
12A581 |
| 1 |
VE922 (VT-GN) |
22 |
14A005 |
| 2 |
SBB70 (BN-RD) |
12 |
|
| 3 |
SBB77 (GY-RD) |
12 |
|
| 4 |
* |
* |
|
| 5 |
* |
* |
|
| 6 |
* |
* |
|
| 7 |
* |
* |
|
| 8 |
CBK02 (GN) |
18 |
|
| 9 |
CCD04 (GY-YE) |
18 |
|
| 10 |
RCD04 (BU-OG) |
18 |
|
| 11 |
* |
* |
12A581 |
| 11 |
VCF35 (GN) |
22 |
14A005 |
| 12 |
* |
* |
12A581 |
| 12 |
VCF34 (WH) |
22 |
14A005 |
| 13 |
VCA06 (WH-OG) |
20 |
|
| 14 |
RCA20 (BN) |
20 |
|
| 15 |
CE229 (VT-OG) |
20 |
|
| 16 |
CE420 (GY-VT) |
18 |
12A581 |
| 16 |
CE420 (GY-VT) |
20 |
14A005 |
| 17 |
* |
* |
12A581 |
| 17 |
CE114 (GN-BU) |
18 |
14A005 |
| 18 |
VE225 (YE-OG) |
20 |
12A581 |
| 18 |
VE225 (YE-OG) |
22 |
14A005 |
| 19 |
VE518 (BN-WH) |
20 |
12A581 |
| 19 |
VE518 (BN-WH) |
22 |
14A005 |
| 20 |
VE934 (GY-BN) |
20 |
|
| 21 |
CE347 (BU-GN) |
20 |
|
| 22 |
LE230 (BN-BU) |
20 |
12A581 |
| 22 |
LE230 (BN-BU) |
20 |
14A005 |
| 22 |
LE230 (BN-BU) |
20 |
14A005 |
| 23 |
CE204 (WH-BU) |
22 |
|
| 24 |
* |
* |
12A581 |
| 24 |
CDC54 (WH-GN) |
22 |
14A005 |
| 25 |
* |
* |
|
| 26 |
* |
* |
|
| 27 |
LE424 (YE-GN) |
20 |
12A581 |
| 27 |
LE424 (YE-GN) |
22 |
14A005 |
| 28 |
RE407 (YE-VT) |
20 |
12A581 |
| 28 |
RE407 (YE-VT) |
22 |
14A005 |
| 29 |
* |
* |
|
| 30 |
CRW13 (GN) |
18 |
12A581 |
| 30 |
CRW13 (GN) |
18 |
14A005 - MKZ |
| 30 |
CRW13 (GN) |
20 |
14A005 - FUSION |
| 31 |
* |
* |
|
| 32 |
* |
* |
|
| 33 |
* |
* |
|
| 34 |
CCB18 (YE-GY) |
12 |
|
| 35 |
CCB19 (GN-BN) |
12 |
|
| 36 |
* |
* |
|
| 37 |
* |
* |
|
| 38 |
* |
* |
|
| 39 |
RE259 (BU) |
20 |
|
| 40 |
RE230 (WH-VT) |
20 |
12A581 |
| 40 |
RE230 (WH-VT) |
22 |
14A005 |
| 40 |
RE407 (YE-VT) |
22 |
14A005 |
