Fuel Filler Door Latch Motor Connector End View (C409)

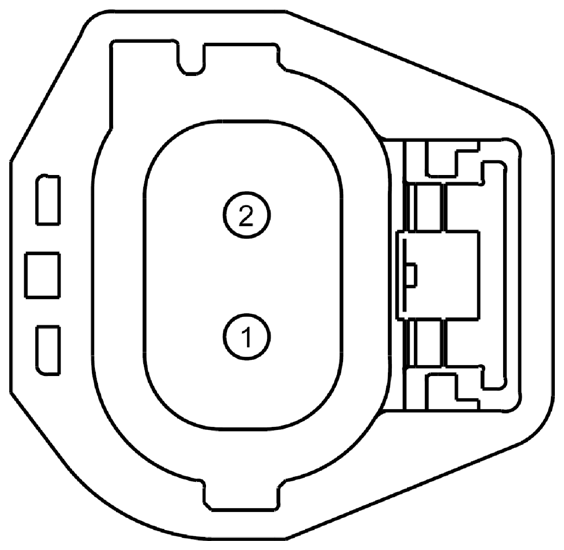

Fig 1: Identifying Fuel Filler Door Latch Motor Connector (C409)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD347 (BK-VT)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT
2	CPL18 (GY-VT)	22	RELAY - FUEL FLAP LOCK

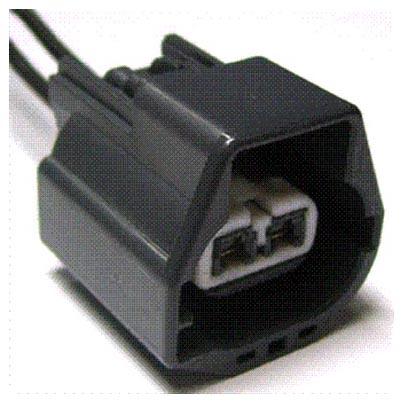

Available Pigtail Kits
Pigtail Kit Part Number WPT-1336	Service Part Number: DU2Z-14S411-KA  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses Motor - Fuel Filler Door Motor - Power Window - LH - Rear Motor - Power Window - RH - Rear
