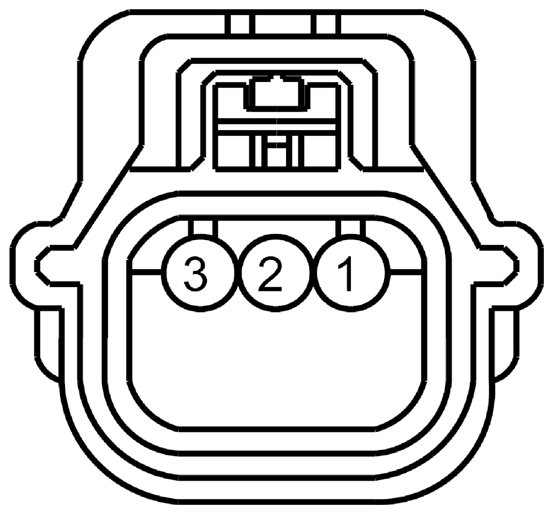

Front Inner Parking Aid Sensor LH Connector End View (C1430)

Fig 1: Identifying Front Inner Parking Aid Sensor LH Connector (C1430)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	LMP06 (VT-GY)	18	CTRL MOD. - PARKING AID # SENSORS FRONT +
2	VMP12 (BU-GY)	18	SENSOR - PARKING AID # FRONT # (RIGHT INNER)
3	RMP06 (YE-OG)	18	CTRL MOD. - PARKING AID # SENSORS FRONT -

Available Pigtail Kits

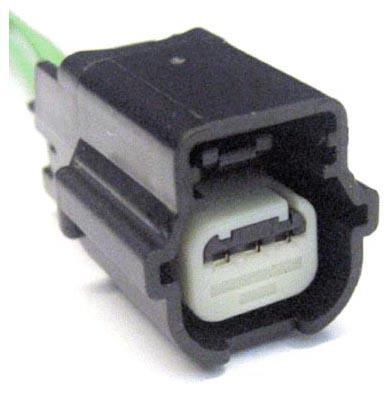

Pigtail Kit Part Number WPT-926	Service Part Number: 9U2Z-14S411-CA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Sensor - Front Park Aid (FPA) Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling

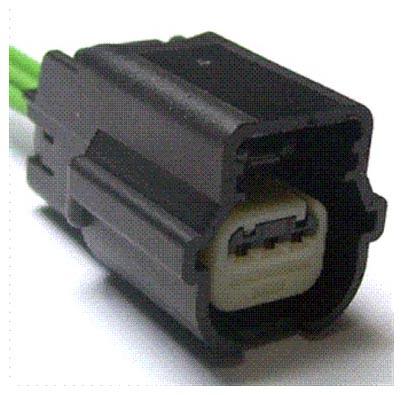

Pigtail Kit Part Number WPT-1315	Service Part Number: 9U2Z-14S411-CB Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure
