Front Door Speaker LH Connector End View (C536)

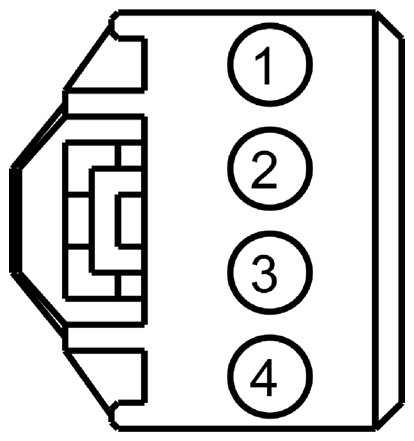

Fig 1: Identifying Front Door Speaker LH Connector (C536)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME07 (WH)	18	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) +
2	VME08 (GN-OG)	20	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER +
3	RME08 (GY-OG)	20	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER -
4	RME07 (WH-BN)	18	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) -

Available Pigtail Kits
Pigtail Kit Part Number WPT-912	Service Part Number: 8U2Z-14S411-HA  Gauge: 14  Pin material: Tin  Cavities: 4  Vehicle Uses Sensor - Oil Temperature Sensor - Power Steering Pressure Sensor - Purge Flow Switch - Gear Shift Select/Neutral Safety
