Front Door Lock Switch RH Connector End View (C605)

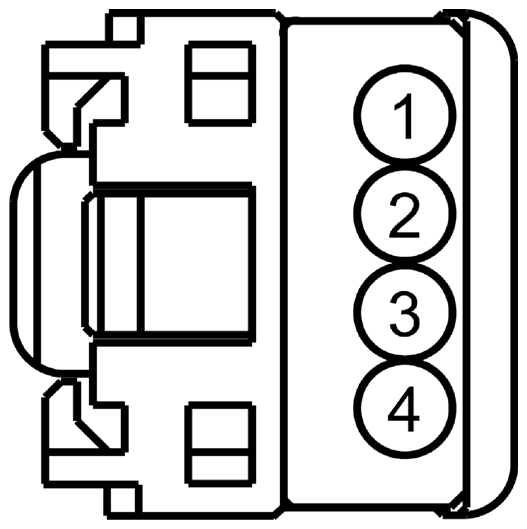

Fig 1: Identifying Front Door Lock Switch RH Connector (C605)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPL78 (VT-WH)	26	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION	MKZ
1	CPL78 (WH)	26	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION	FUSION
2	CPL16 (YE)	26	SWITCH - TRIM DOOR LOCK PASSENGER # UNLOCK	FUSION
2	CPL16 (YE-GN)	26	SWITCH - TRIM DOOR LOCK PASSENGER # UNLOCK	MKZ
3	RPW05 (GN-BN)	22	CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN	MKZ
3	RPW05 (GN)	26	CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN	FUSION
4	CPL15 (BU)	26	SWITCH - TRIM DOOR LOCK PASSENGER # LOCK

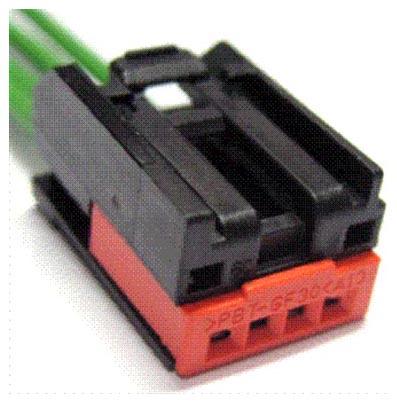

Available Pigtail Kits

Pigtail Kit Part Number WPT-1139

Service Part Number: 3U2Z-14S411-PRC  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Connector - Audio Input Lamp - CHMSL (Center High Mount Stop Lamp) Module - Anti-theft Module - Power Moonroof Sensor - Steering Wheel Position Switch - 4x4 Control Switch - Clutch Pedal Position Switch - Deck Lid/Lift Gate Ajar Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Lift Gate Glass Ajar Switch - Message Center Switch - Moon Roof/Sun Roof Transceiver - Passive Anti-Theft (PATS)
