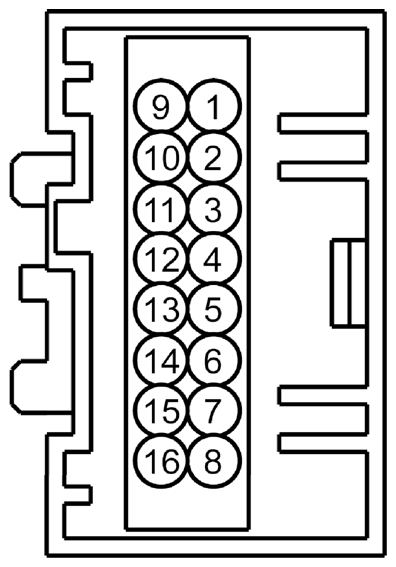

| 1 |
CRD13 (GN) |
26 |
CTRL MOD. - HEATER MIRROR LEFT |
FUSION |
| 1 |
CRD13 (OG-WH) |
26 |
CTRL MOD. - HEATER MIRROR LEFT |
MKZ |
| 2 |
RRD12 (BN) |
22 |
CTRL MOD. - ELECTROCHROMIC MIRROR - |
|
| 3 |
CPM39 (GY-RD) |
26 |
CTRL MOD. - LEFT MIRROR FOLD OUT (DRV) |
MKZ |
| 3 |
CPM39 (GN-WH) |
26 |
CTRL MOD. - LEFT MIRROR FOLD OUT (DRV) |
all others |
| 3 |
CPM39 (GN-VT) |
22 |
CTRL MOD. - LEFT MIRROR FOLD OUT (DRV) |
Korea |
| 4 |
RPM05 (VT-WH) |
26 |
CTRL MOD. - LEFT MIRROR RETURN |
FUSION |
| 4 |
RPM05 (GN) |
26 |
CTRL MOD. - LEFT MIRROR RETURN |
MKZ |
| 5 |
CRB06 (WH) |
26 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER + |
FUSION |
| 5 |
CRB06 (GN-WH) |
26 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER + |
MKZ |
| 6 |
CPM28 (BU) |
26 |
CTRL MOD. - LEFT MIRROR RIGHT |
|
| 7 |
CPM39 (GN-VT) |
22 |
CTRL MOD. - LEFT MIRROR FOLD OUT (DRV) |
|
| 8 |
GD382 (BK-GY) |
22 |
GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT |
|
| 9 |
LRD12 (BU-GY) |
22 |
CTRL MOD. - ELECTROCHROMIC MIRROR + |
MKZ |
| 9 |
LRD12 (BU) |
22 |
CTRL MOD. - ELECTROCHROMIC MIRROR + |
FUSION |
| 10 |
CLS22 (BN) |
26 |
CTRL MOD. - TURN LAMP LEFT MIRROR + |
FUSION |
| 10 |
CLS22 (BN-WH) |
26 |
CTRL MOD. - TURN LAMP LEFT MIRROR + |
MKZ |
| 11 |
CLN31 (VT) |
26 |
CTRL MOD. - PUDDLE LAMP LEFT |
|
| 12 |
LPM30 (GY-BN) |
26 |
CTRL MOD. - SENSORS MIRROR POSITION (LEFT) + |
|
| 13 |
VPM35 (YE-BU) |
26 |
SENSOR - LEFT MIRROR POSITION # HORIZONTAL |
|
| 14 |
VPM36 (BN-YE) |
26 |
SENSOR - LEFT MIRROR POSITION # VERTICAL |
|
| 15 |
RRB06 (GY) |
26 |
CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER - |
|
| 16 |
CPM04 (BN) |
26 |
CTRL MOD. - LEFT MIRROR FOLD IN |
|
