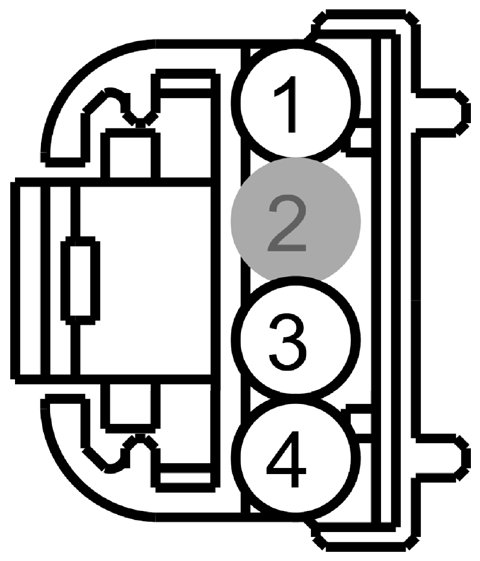

Driver Door Window Control Switch Connector End View (C535)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBP31 (BU) | 22 | FUSE - 31 OR CIRCUIT BREAKER | FUSION |
| 1 | CBP31 (BU-OG) | 22 | FUSE - 31 OR CIRCUIT BREAKER | MKZ |
| 2 | * | * | Not Used | |
| 3 | VDN09 (WH-GN) | 22 | CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE | |
| 4 | RPW03 (BU-GN) | 22 | CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN |
| Available Pigtail Kits | |
|---|---|

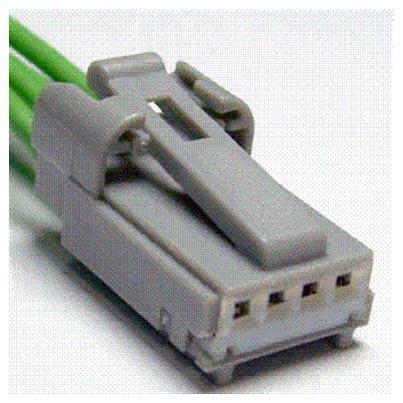

| Pigtail Kit Part Number WPT-1013 | Service Part Number: 9U2Z-14S411-TA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses
|
