Splice Block 19 Connector End View (C261)

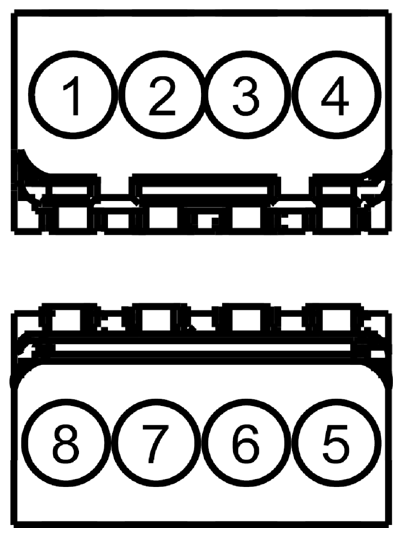

Fig 1: Identifying Splice Block 19 Connector (C261)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBX07 (GN-RD)	22	POWER - CTRL MOD. AMBIENT LIGHTING
2	CBX07 (GN-RD)	22	POWER - CTRL MOD. AMBIENT LIGHTING
3	VDN07 (WH-VT)	22	CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE
4	VDN07 (WH-VT)	22	CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE
5	CBX07 (GN-RD)	22	POWER - CTRL MOD. AMBIENT LIGHTING
6	CBX07 (GN-RD)	22	POWER - CTRL MOD. AMBIENT LIGHTING
7	VDN07 (WH-VT)	22	CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE
8	VDN07 (WH-VT)	22	CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE
