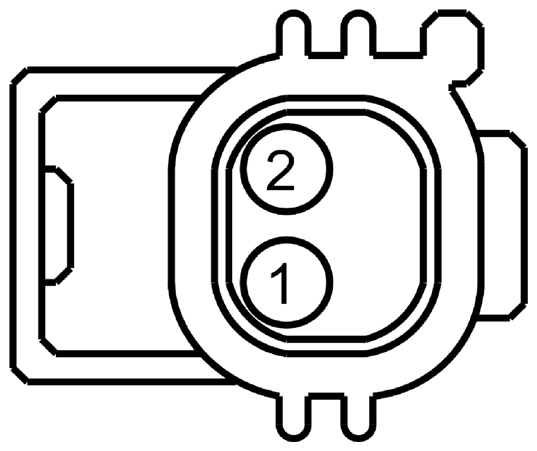

Knock Sensor 2 (KS2) Connector End View (C108)

Fig 1: Identifying Knock Sensor 2 Connector (C108)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE324 (BN-GN)	20	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2-)
2	VE802 (BN-BU)	20	SENSOR - KNOCK 2ND BANK 1ST (KS2+)

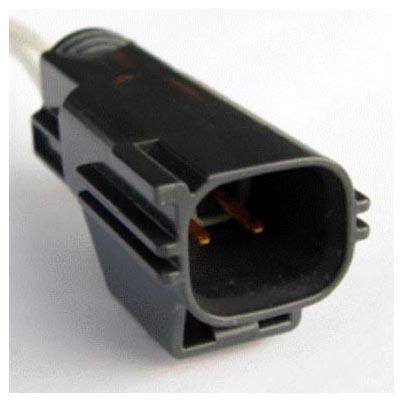

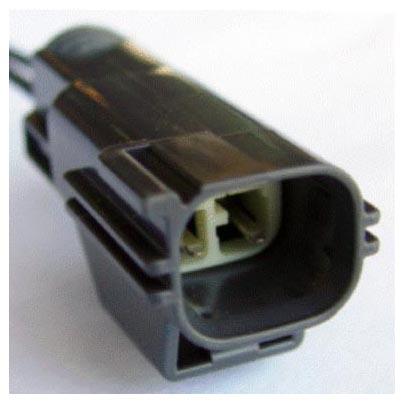

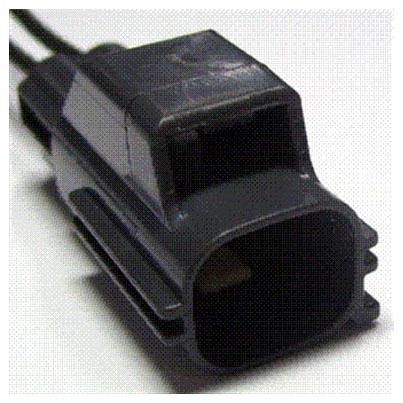

Available Pigtail Kits
Pigtail Kit Part Number WPT-987	Service Part Number: 3U2Z-14S411-CZAB  Gauge: 16  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Sensor - Cylinder Head Temperature Sensor - Knock
Pigtail Kit Part Number WPT-418	Service Part Number: 3U2Z-14S411-JA  Gauge: 16  Pin material: Gold  Cavities: 2  Vehicle Uses Sensor - Knock
Pigtail Kit Part Number WPT-707	Service Part Number: 3U2Z-14S411-CZAA  Gauge: 18  Pin material: Tin  Cavities: 2  Vehicle Uses Sensor - Knock
