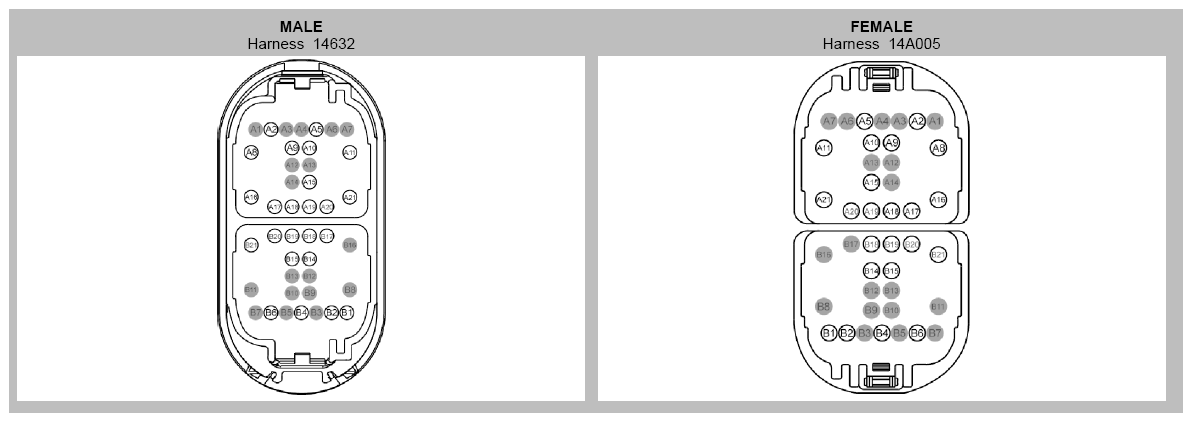

Inline Connector End View (C314)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| A1 |
* |
* |
|
| A2 |
CLN09 (BN-BU) |
22 |
14A005 - FUSION HEV |
| A2 |
CLN09 (YE-GN) |
20 |
14A005 - MKZ |
| A2 |
CLN09 (YE-GN) |
22 |
14A005 - PHEV |
| A2 |
CPL89 (BN) |
22 |
14632 - FUSION |
| A2 |
CPL89 (BN-BU) |
22 |
14632 - MKZ |
| A3 |
* |
* |
|
| A4 |
* |
* |
|
| A5 |
VPK47 (VT) |
22 |
|
| A6 |
* |
* |
14632 |
| A6 |
VDN05 (YE-GY) |
22 |
14A005 |
| A7 |
* |
* |
14632 |
| A7 |
CBX07 (GN-RD) |
22 |
14A005 |
| A8 |
CPL13 (BN-GN) |
14 |
|
| A9 |
CPL39 (YE) |
22 |
|
| A10 |
RPK39 (VT) |
22 |
14632 |
| A10 |
RPK39 (VT-OG) |
20 |
14A005 - MKZ |
| A10 |
RPK39 (VT-OG) |
22 |
14A005 - FUSION |
| A11 |
CPL11 (GY-BN) |
14 |
|
| A12 |
* |
* |
|
| A13 |
* |
* |
|
| A14 |
* |
* |
|
| A15 |
VDN10 (BN) |
22 |
14632 - FUSION |
| A15 |
VDN10 (BN-VT) |
20 |
14A005 - MKZ |
| A15 |
VDN10 (BN-VT) |
22 |
14632 - MKZ |
| A15 |
VDN10 (BN-VT) |
22 |
14A005 - FUSION |
| A16 |
SBP30 (BN-RD) |
12 |
14632 - FUSION |
| A16 |
SBP30 (BN-RD) |
12 |
14A005 |
| A16 |
SBP52 (GN-RD) |
12 |
14632 - MKZ |
| A17 |
RME12 (BN-BU) |
18 |
14632 - MKZ |
| A17 |
VME12 (BN-WH) |
18 |
FUSION |
| A17 |
VME12 (BN-WH) |
20 |
14A005 - MKZ |
| A18 |
RME12 (BN-BU) |
18 |
FUSION |
| A18 |
RME12 (BN-BU) |
20 |
14A005 - MKZ |
| A18 |
VME12 (BN-WH) |
18 |
14632 - MKZ |
| A19 |
* |
* |
14632 |
| A19 |
VME40 (BU-WH) |
20 |
14A005 |
| A20 |
* |
* |
14632 |
| A20 |
RME40 (VT-WH) |
20 |
14A005 |
| A21 |
GD383 (BK-WH) |
12 |
|
| B1 |
VDN05 (YE-GY) |
22 |
|
| B2 |
CBX07 (GN-RD) |
22 |
|
| B3 |
* |
* |
|
| B4 |
VPK47 (VT) |
22 |
|
| B5 |
* |
* |
|
| B6 |
RPK39 (VT-OG) |
22 |
|
| B7 |
* |
* |
|
| B8 |
* |
* |
|
| B9 |
* |
* |
|
| B10 |
* |
* |
|
| B11 |
* |
* |
|
| B12 |
* |
* |
|
| B13 |
* |
* |
|
| B14 |
VME40 (BU-WH) |
20 |
|
| B15 |
RME40 (VT-WH) |
20 |
|
| B16 |
* |
* |
|
| B17 |
* |
* |
|
| B18 |
* |
* |
|
| B19 |
* |
* |
|
| B20 |
* |
* |
|
| B21 |
* |
* |
|
