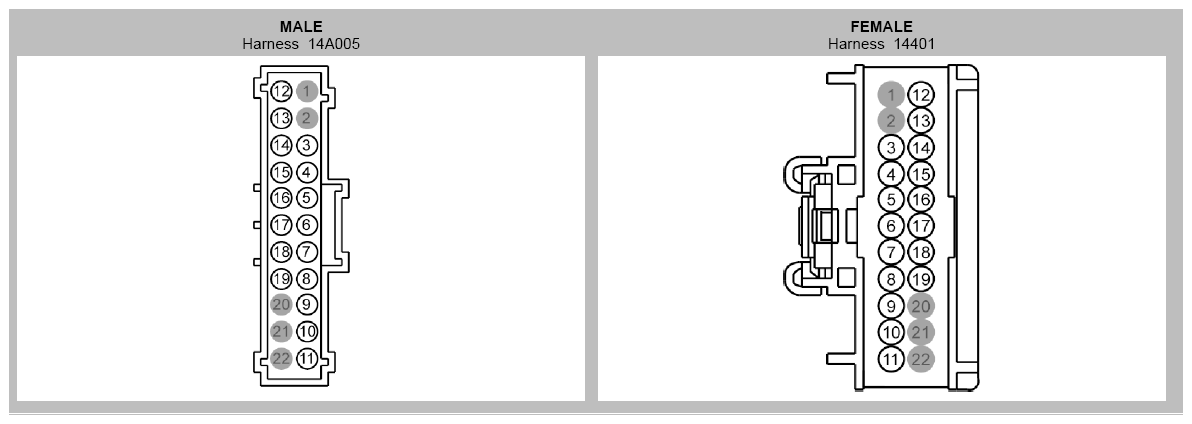

Inline Connector End View (C275)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | * | * | |
| 2 | * | * | |
| 3 | CPP03 (GN-VT) | 20 | |
| 4 | CPP04 (GY) | 20 | |
| 5 | CPP05 (WH-VT) | 20 | |
| 6 | CPP23 (VT-GY) | 20 | |
| 7 | CPP22 (GY-BN) | 20 | |
| 8 | VPP08 (WH) | 20 | |
| 9 | VPP17 (VT-BN) | 20 | |
| 10 | CPL45 (BN) | 22 | |
| 11 | CPL45 (BN) | 22 | 14A005 - manual luggage compartment |
| 11 | CPR63 (GY-YE) | 22 | 14401 |
| 11 | CPR63 (GY-YE) | 22 | 14A005 - power luggage compartment |
| 12 | VMEA9 (BU) | 26 | 14401 |
| 12 | VMEA9 (BU-GY) | 22 | 14A005 |
| 13 | RMEA9 (VT) | 26 | 14401 |
| 13 | RMEA9 (VT-BN) | 22 | 14A005 |
| 14 | VMEB0 (GN) | 26 | 14401 |
| 14 | VMEB0 (GN-WH) | 22 | 14A005 |
| 15 | RMEB0 (BN) | 26 | 14401 |
| 15 | RMEB0 (WH-BN) | 22 | 14A005 |
| 16 | VDB29 (GN) | 22 | 14401 |
| 16 | VDB29 (GN) | 26 | 14A005 |
| 17 | VDB30 (WH) | 22 | 14401 |
| 17 | VDB30 (WH) | 26 | 14A005 |
| 18 | VDB25 (GN) | 26 | |
| 19 | VDB26 (GY) | 26 | |
| 20 | * | * | |
| 21 | * | * | |
| 22 | * | * |
