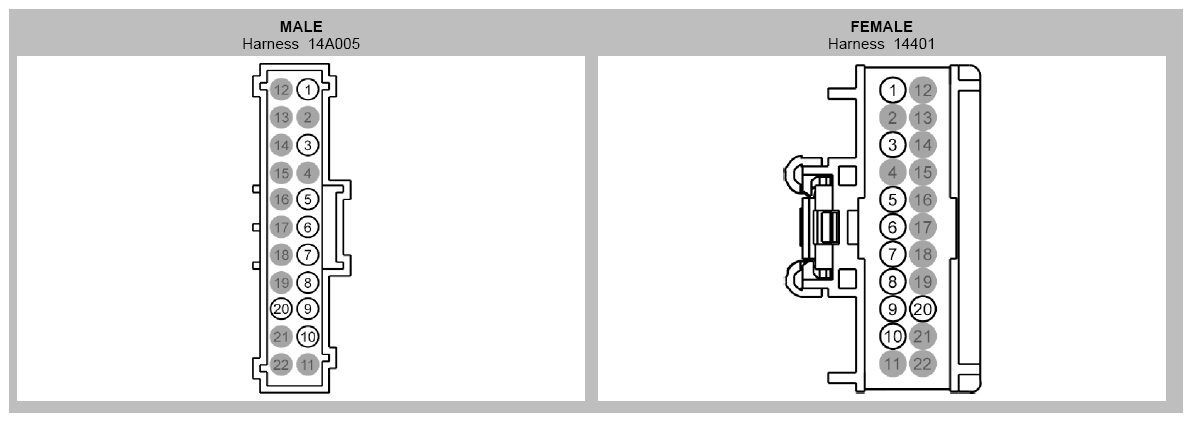

Inline Connector End View (C238)

Fig 1: Identifying Inline Connector (C238)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	CBX07 (GN-RD)	22
2	*	*
3	VLN04 (VT)	26	14401
3	VLN04 (VT-GY)	22	14A005
4	*	*
5	VDB29 (GN)	26	14401 - 4.2 inch display
5	VDB29 (GN)	26	14A005
5	VDB29 (GN-BU)	22	14401 - without 4.2 inch display
6	VDB30 (WH)	26	14401 - 4.2 inch display
6	VDB30 (WH)	26	14A005
6	VDB30 (WH-GN)	22	14401 - without 4.2 inch display
7	VDB25 (GN)	26	14401
7	VDB25 (GN)	26	14A005 - PHEV
7	VDB25 (GN-WH)	26	14A005 - HEV
8	VDB26 (GY)	26
9	VDB04 (BU)	26	14401
9	VDB04 (WH)	26	14A005 - HEV
9	VDB04 (WH-BU)	22	14A005 - PHEV
10	VDB05 (BU)	26	14A005 - HEV
10	VDB05 (WH)	22	14A005 - PHEV
10	VDB05 (WH)	26	14401
11	*	*
12	*	*
13	*	*
14	*	*
15	*	*
16	*	*
17	*	*
18	*	*
19	*	*
20	CME36 (GN-VT)	18
21	*	*
22	*	*
