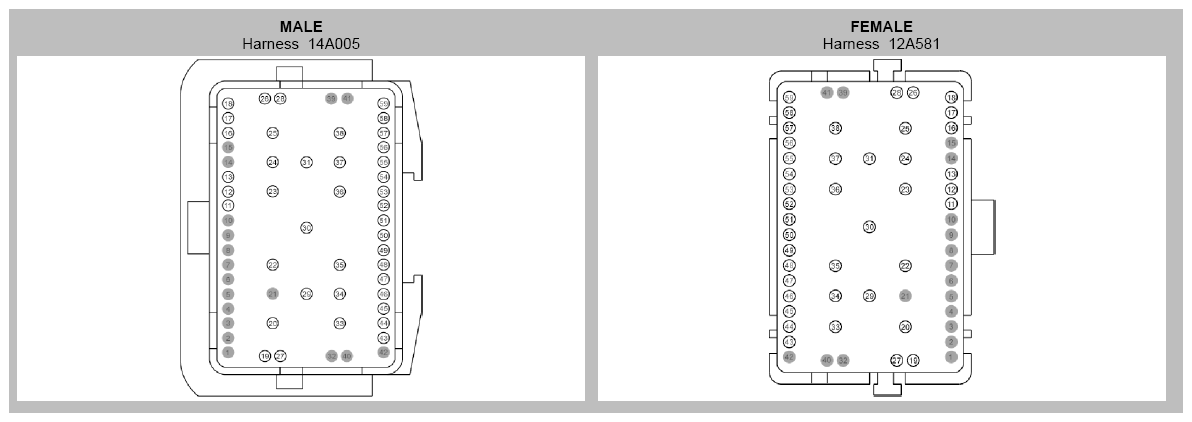

Inline Connector End View (C215)

Fig 1: Identifying Inline Connector (C215)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	*	*
2	*	*
3	*	*
4	*	*
5	*	*
6	*	*
7	*	*
8	*	*
9	*	*
10	*	*
11	LCD02 (YE-GN)	18	14A005
11	LCD02 (YE-GN)	20	12A581
12	VCD10 (BN)	18
13	VCD11 (GY-VT)	18
14	*	*
15	*	*
16	RCD02 (GN-BN)	18	14A005
16	RCD02 (GN-BN)	20	12A581
17	CCD03 (WH-BU)	18
18	RCD03 (VT-BN)	18
19	SBP32 (BN-RD)	20	12A581
19	SBP32 (VT-RD)	20	14A005
20	SBB74 (YE-RD)	12
21	*	*
22	CBB29 (WH-VT)	18
23	SBB80 (VT-RD)	12	12A581
23	SBB80 (VT-RD)	12	14A005 - power luggage compartment
23	SBB80 (VT-RD)	14	14A005 - manual luggage compartment
24	SBB72 (VT-RD)	10	14A005
24	SBB72 (VT-RD)	12	12A581
25	SBB35 (BU-RD)	18
26	CPL18 (GY-VT)	20	12A581
26	CPL18 (GY-VT)	22	14A005
27	CBB53 (GY-BN)	20	12A581
27	CBB53 (GY-RD)	20	14A005
28	CBB23 (BN-YE)	18	14A005
28	CBB23 (BN-YE)	20
29	SBB85 (GY-RD)	10	14A005
29	SBB85 (WH-RD)	12	12A581
30	CRD06 (BN-YE)	10
31	SBB57 (RD)	10
32	*	*
33	SBB73 (RD)	12	12A581
33	SBB73 (RD)	16	14A005
34	CBB52 (GN-WH)	18	12A581
34	CBB52 (GN-WH)	18	14A005 - MKZ, PHEV
34	CBB52 (GN-WH)	20	14A005 - FUSION HEV
35	CCB16 (WH-VT)	12
36	CE608 (VT-GN)	12
37	SBB36 (GN-RD)	18
38	CCB17 (BU-GN)	12
39	*	*
40	*	*
41	*	*
42	*	*
43	*	*
44	*	*
45	*	*
46	*	*
47	*	*
48	*	*
49	VDB04 (WH-BU)	22
50	VDB05 (WH)	22
51	VDB25 (GN)	26	14A005 - MKZ
51	VDB25 (GN-OG)	20	12A581
51	VDB25 (GN-OG)	20	14A005 - FUSION
52	VDB26 (GY)	26	14A005 - MKZ
52	VDB26 (GY-BU)	20	12A581
52	VDB26 (GY-BU)	20	14A005 - FUSION
53	*	*
54	*	*
55	*	*
56	*	*
57	VCA04 (BU-OG)	20
58	RCA18 (BN-GN)	20
59	*	*
