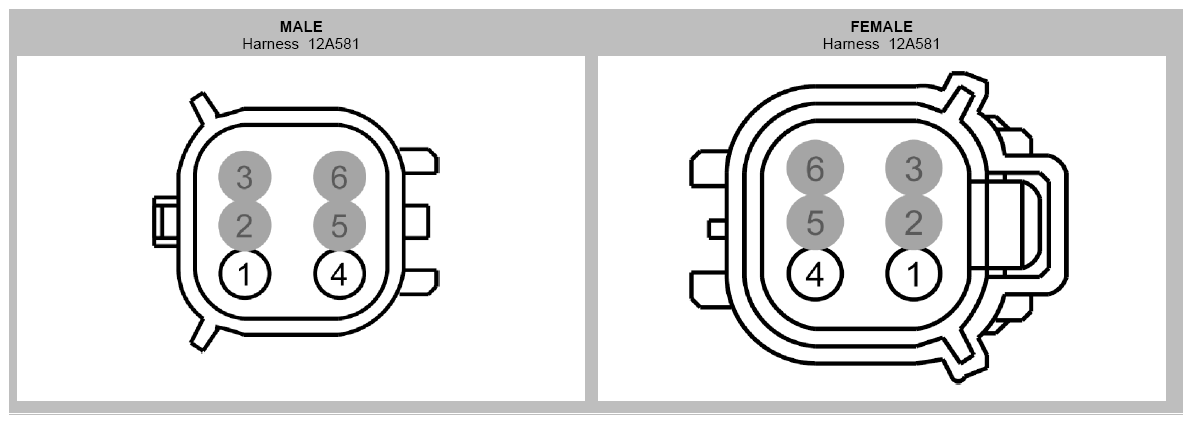

Inline Connector End View (C192)

Fig 1: Identifying Inline Connector (C192)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	CBB25 (WH-OG)	18	12A581 - FEMALE
1	CBB25 (WH-OG)	20	12A581 - MALE
2	*	*	12A581
2	VDB25 (GN-OG)	20	12A581 - MALE
3	*	*
4	CBB25 (WH-OG)	18	12A581 - FEMALE
4	CBB25 (WH-OG)	18	12A581 - MALE
5	*	*	12A581
5	VDB26 (GY-BU)	20	12A581 - MALE
6	*	*
